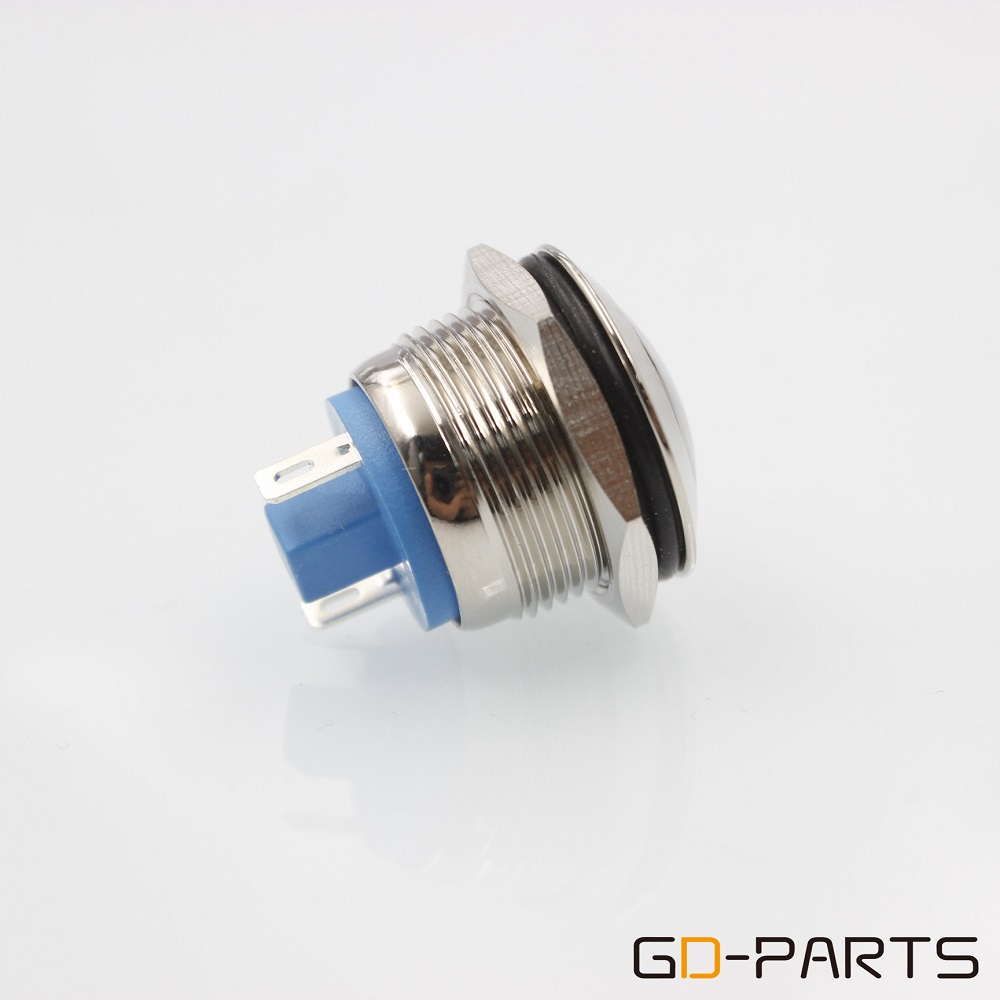

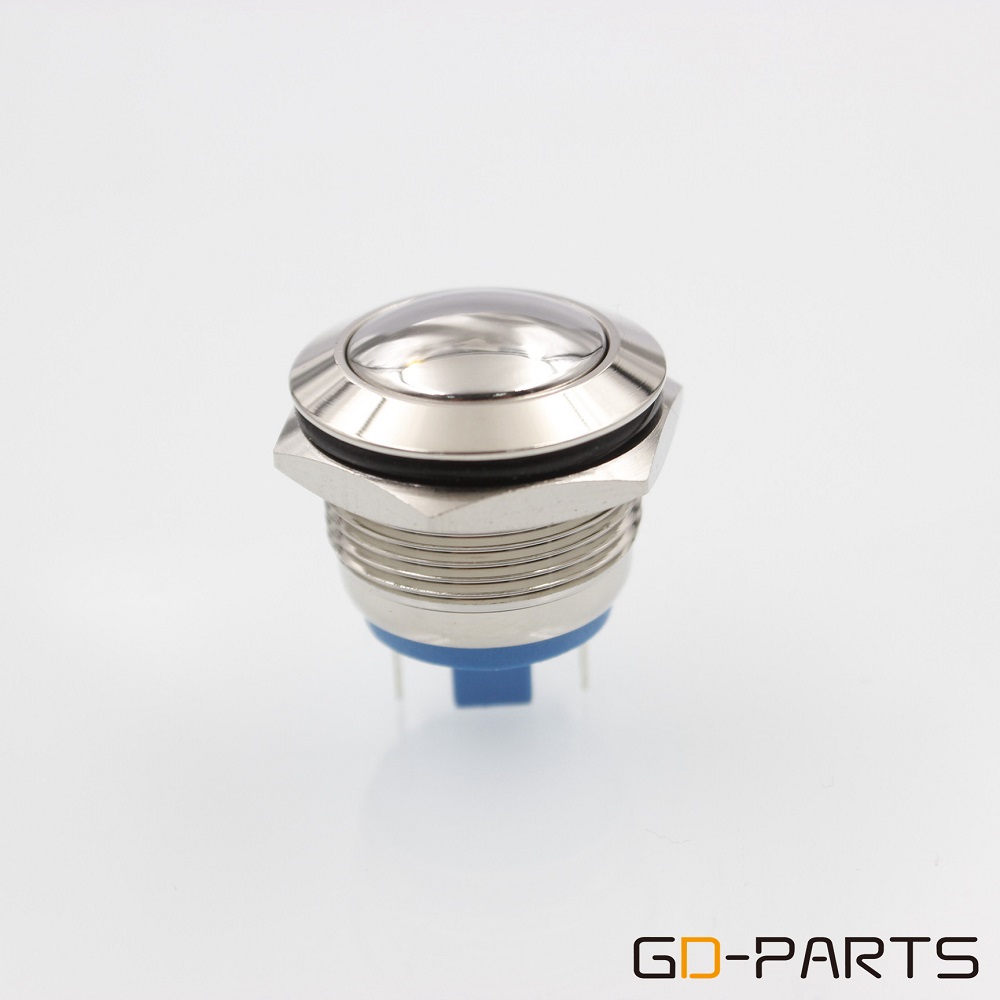

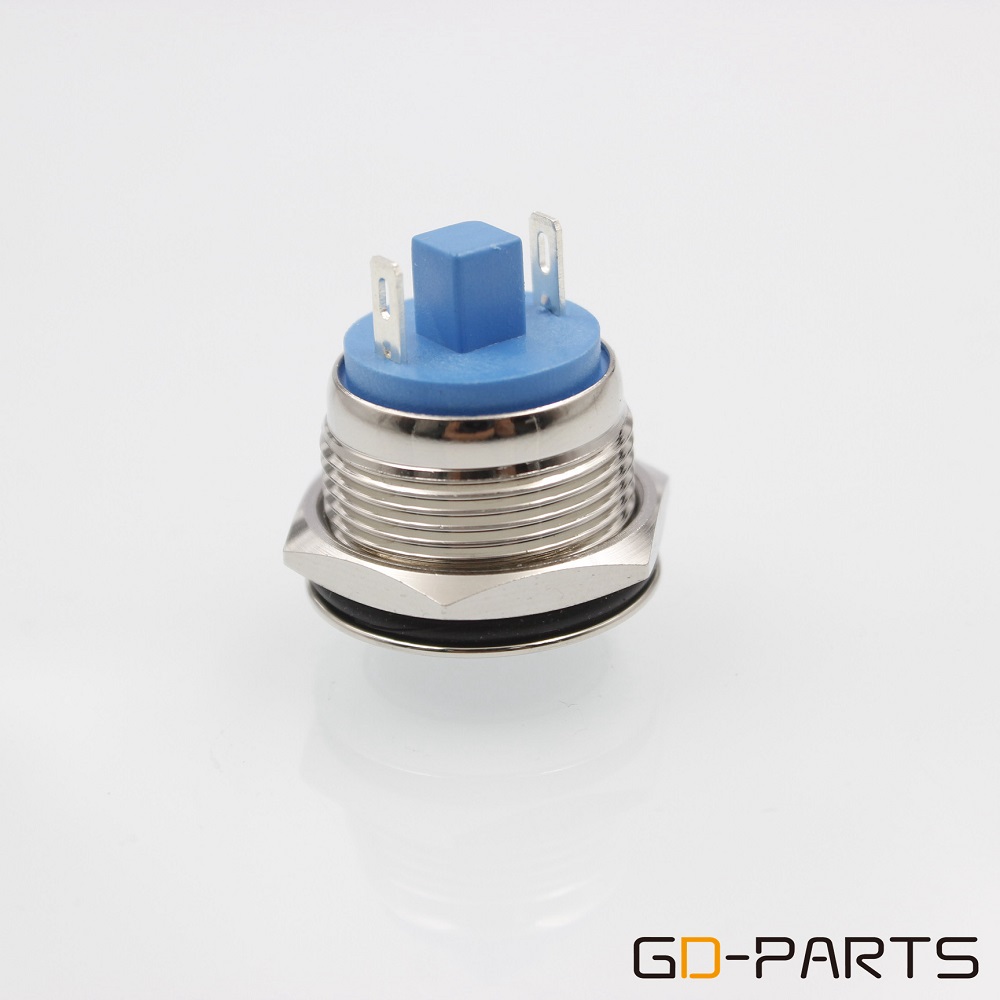

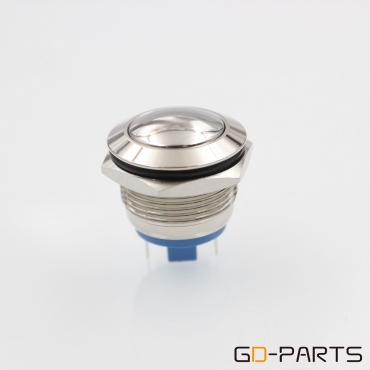

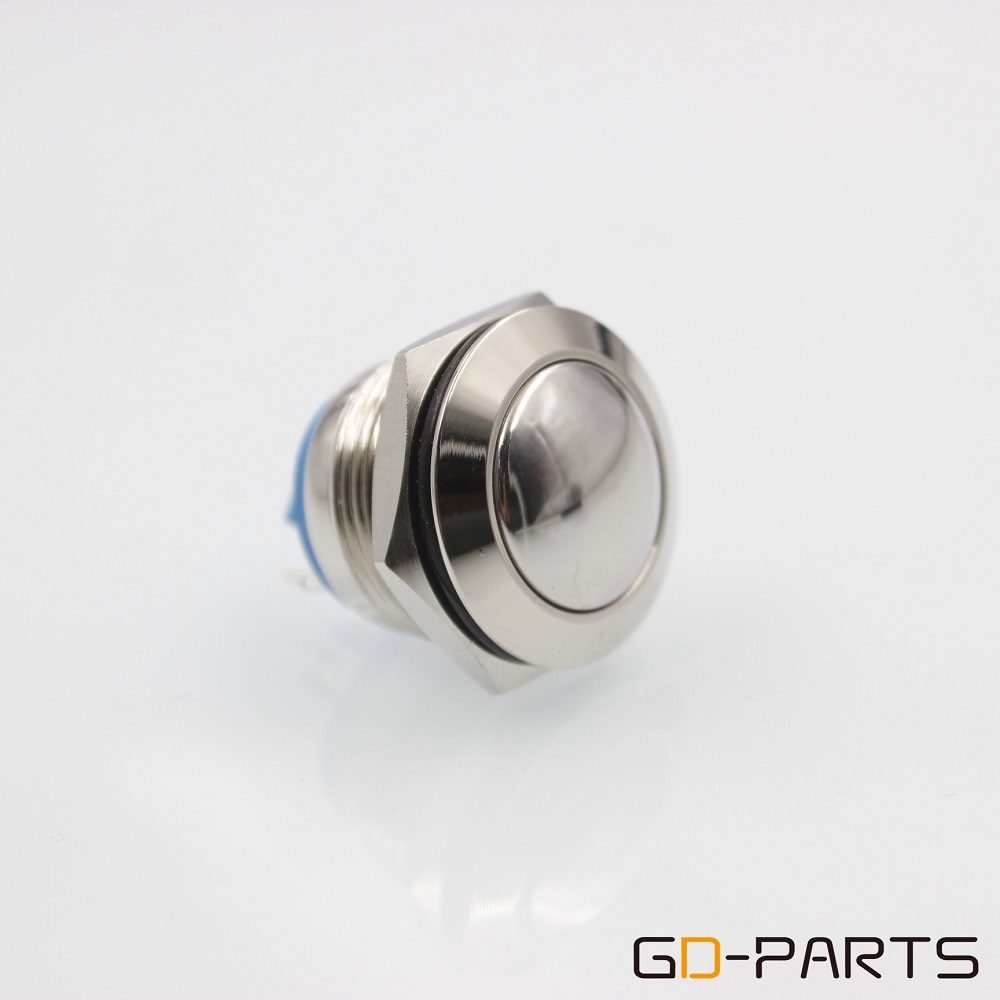

19mm Nickel Plated Brass Momentary Push Button Switch IP65 IK09 250VAC 3A:GDLZ19-B10
Item ID #GDLZ19-B10
List Price: $4.50
Price: $4.00
Qty.Range(unit) Price(per unit) Discount
1 $4.00 $0.00
28 $3.50 $0.50
56 $3.00 $1.00
112 $2.50 $1.50
224 $2.15 $1.85
Quantity: Unit(s)
Description

Brand new momentary push button switch
Item No.: GDLZ19-B10
Mounting hole size: 19mm
Switching rating: 250VAC 3A
Contact Combination: 1NO
Operation: Momentary
Head shape: Ball
Shell Material: Brass Nickel Plated
Protection grade: IP65 IK09 (Dust proof, water proof)
Terminal type: J pin terminal
Contact resistance: less than 50mohm
Insulation resistance: more than 1000mohm
Dielectric strength: 2000VAC
Mechanical life: more than 1000,000 times
Electrical life: more than 200,000 times
Panel thickness: 1-8mm
Nut torque: 5-14Nm
Operating pressure: about 4N
Operating stroke: 2mm
Silver alloy contact
Base material: PBT

The price is for 1PC
