EIZZ Premium 3 pins Female XLR Jack Snake Connector HIFI AUDIO GUITAR AMP DIY Platinum plated: GDEZ205F
Item ID #GDEZ205F
List Price: $40.00
Price: $38.00
Qty.Range(unit) Price(per unit) Discount
1 $38.00 $0.00
3 $37.00 $1.00
5 $36.00 $2.00
10 $35.00 $3.00
20 $34.00 $4.00
30 $33.00 $5.00
50 $32.00 $6.00
Quantity: Unit(s)
Description

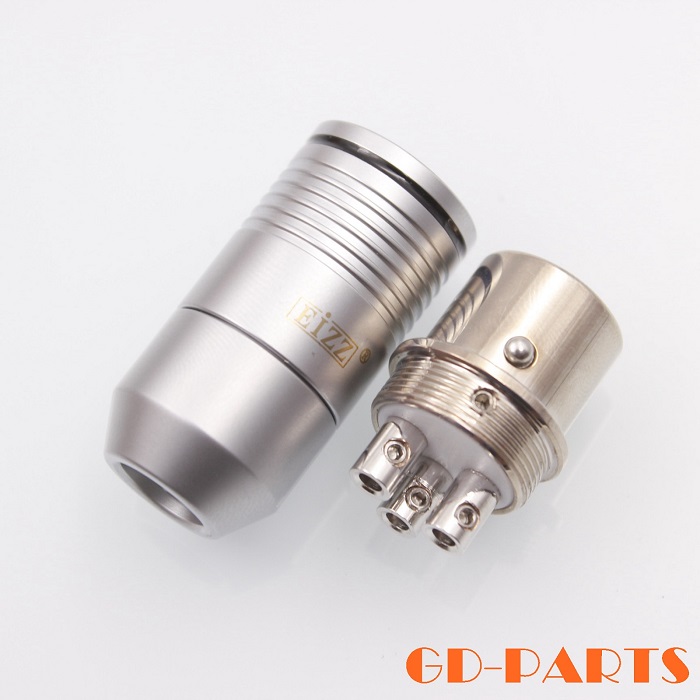

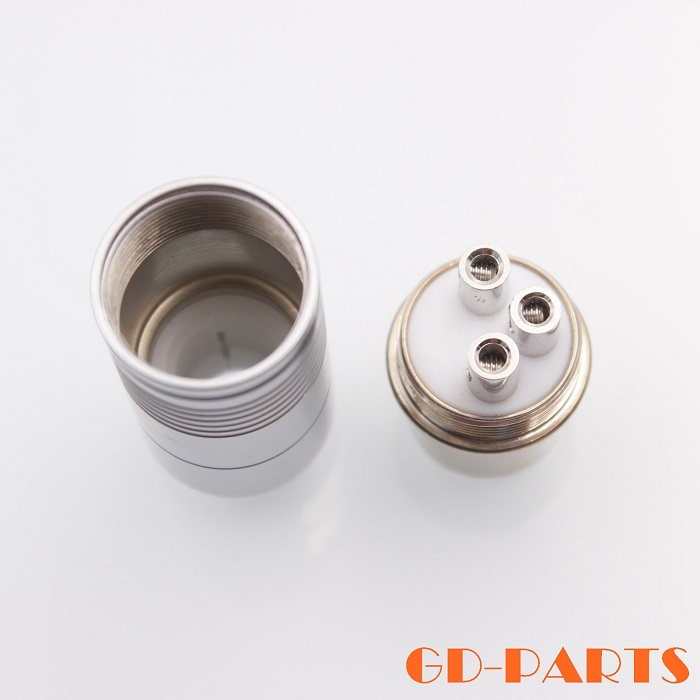

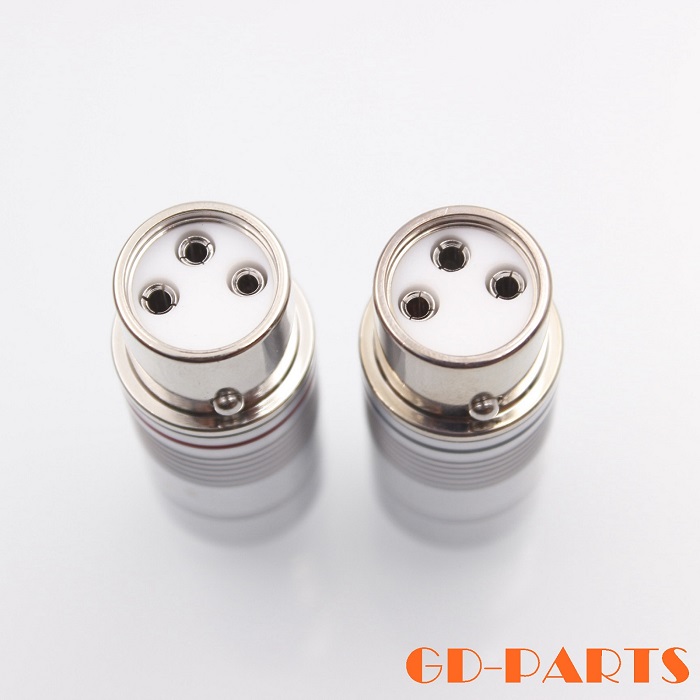

Brand new EIZZ female XLR connector
Item No.: GDEZ205F
Material of insulator: Teflon
Material of conductor: phosphor bronze, platinum plated (non magnetic)
Material of shell/shield: Chrome plated aluminum alloy
Overall length: 52.2mm
Overall diameter: 19mm
Max.cable diameter: 9mm
Fixed with screw, solder free
Please check the following drawing for detailed dimensions:

Package includes: 1 pair XLR female connectors (Red&Blue, 1pc each)
