1 Matched Pair PSVANE 300B vacuum tubes for vintage tube audio amps DIY: HIFI-300B
Item ID #HIFI-300B
List Price: $175.00
Price: $170.00
Qty.Range(unit) Price(per unit) Discount
1 $170.00 $0.00
5 $130.00 $40.00
10 $120.00 $50.00
25 $110.00 $60.00
50 $100.00 $70.00
Quantity: Unit(s)
Description

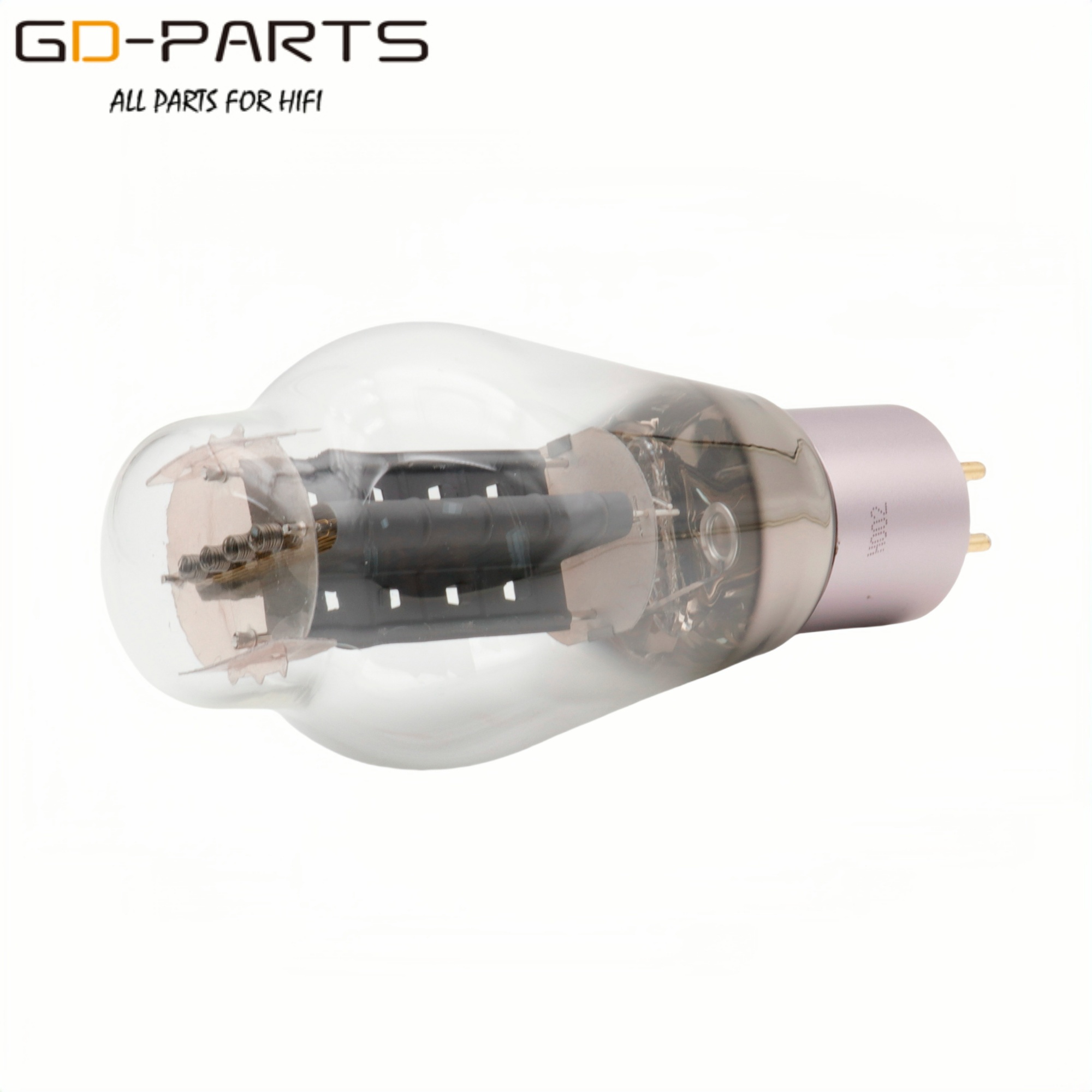

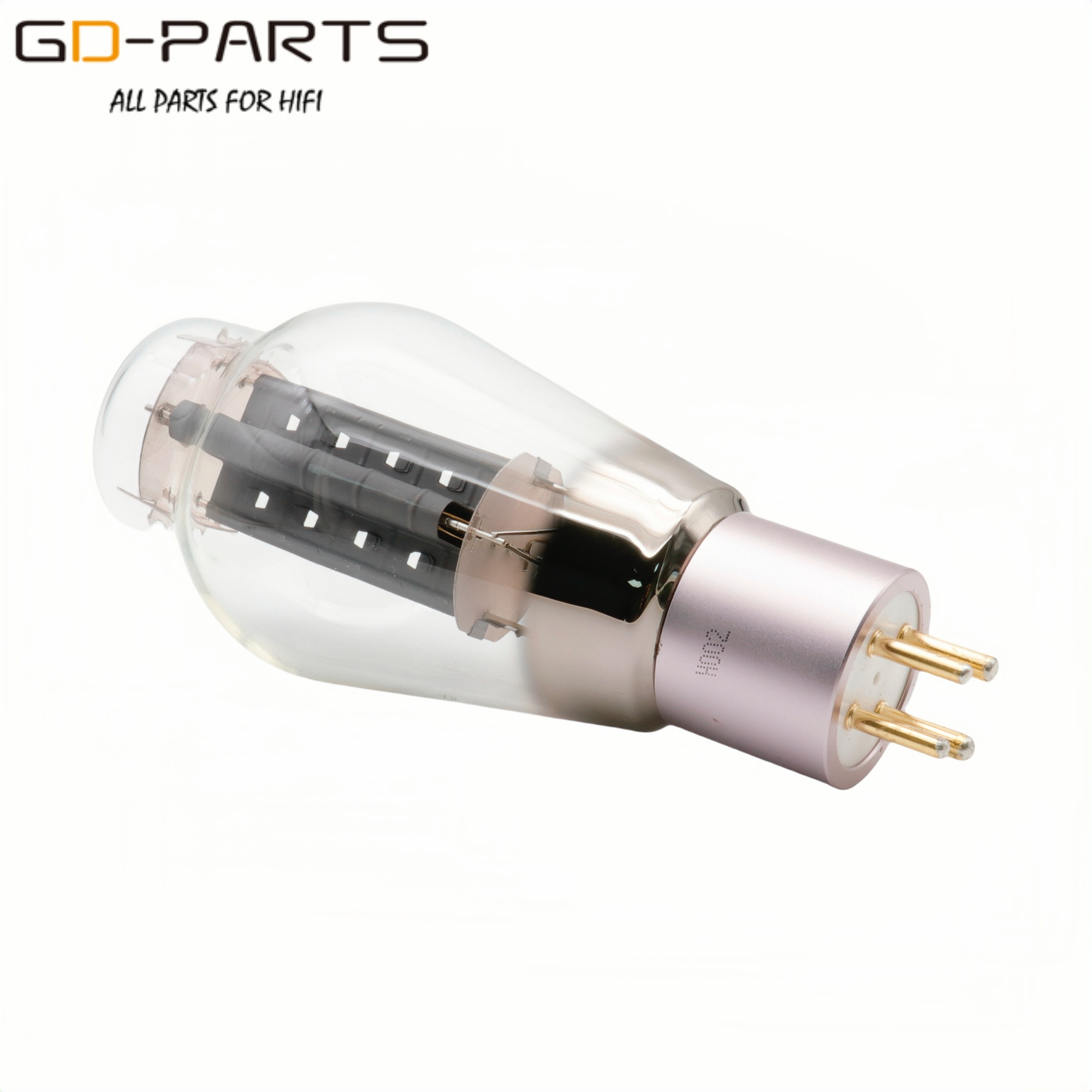

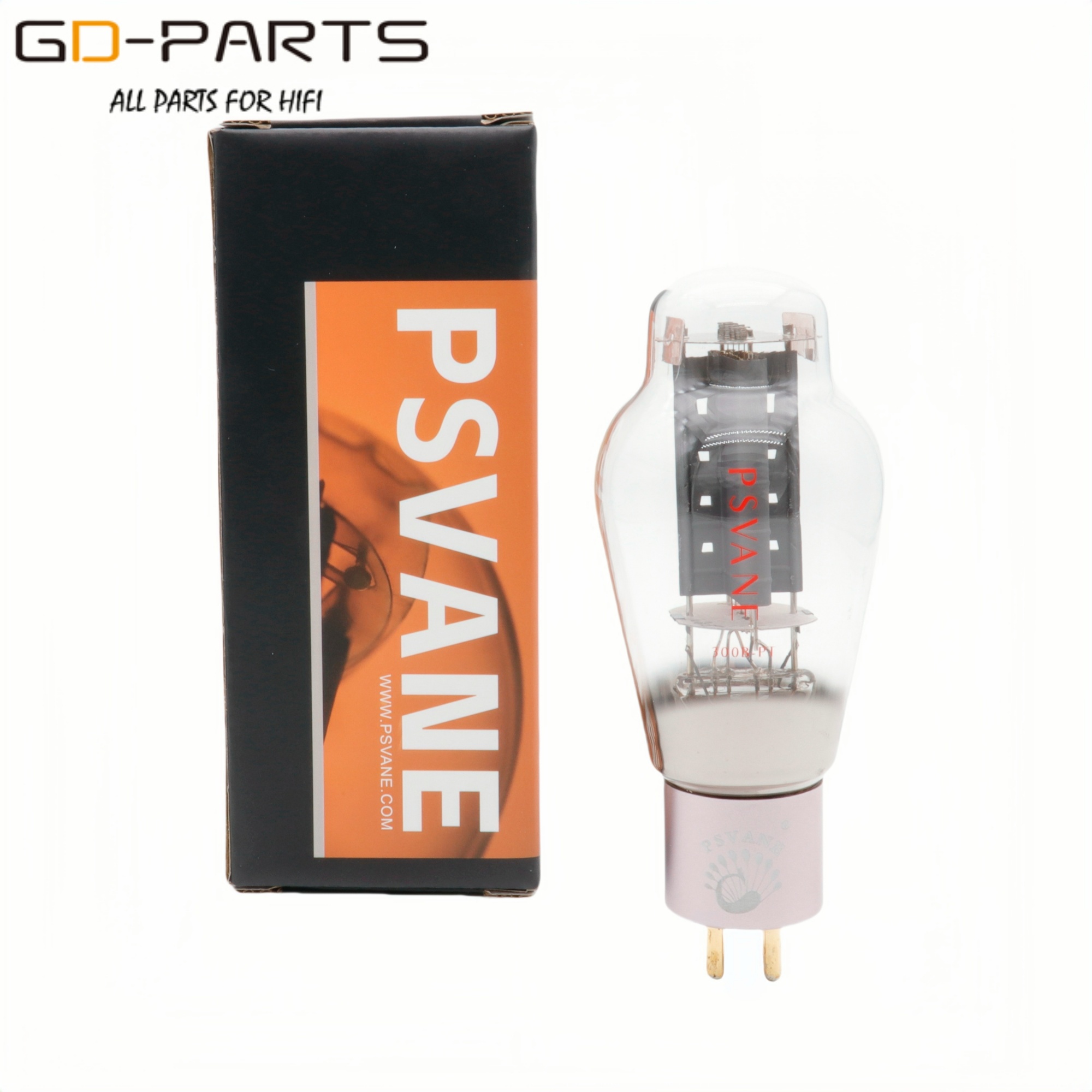

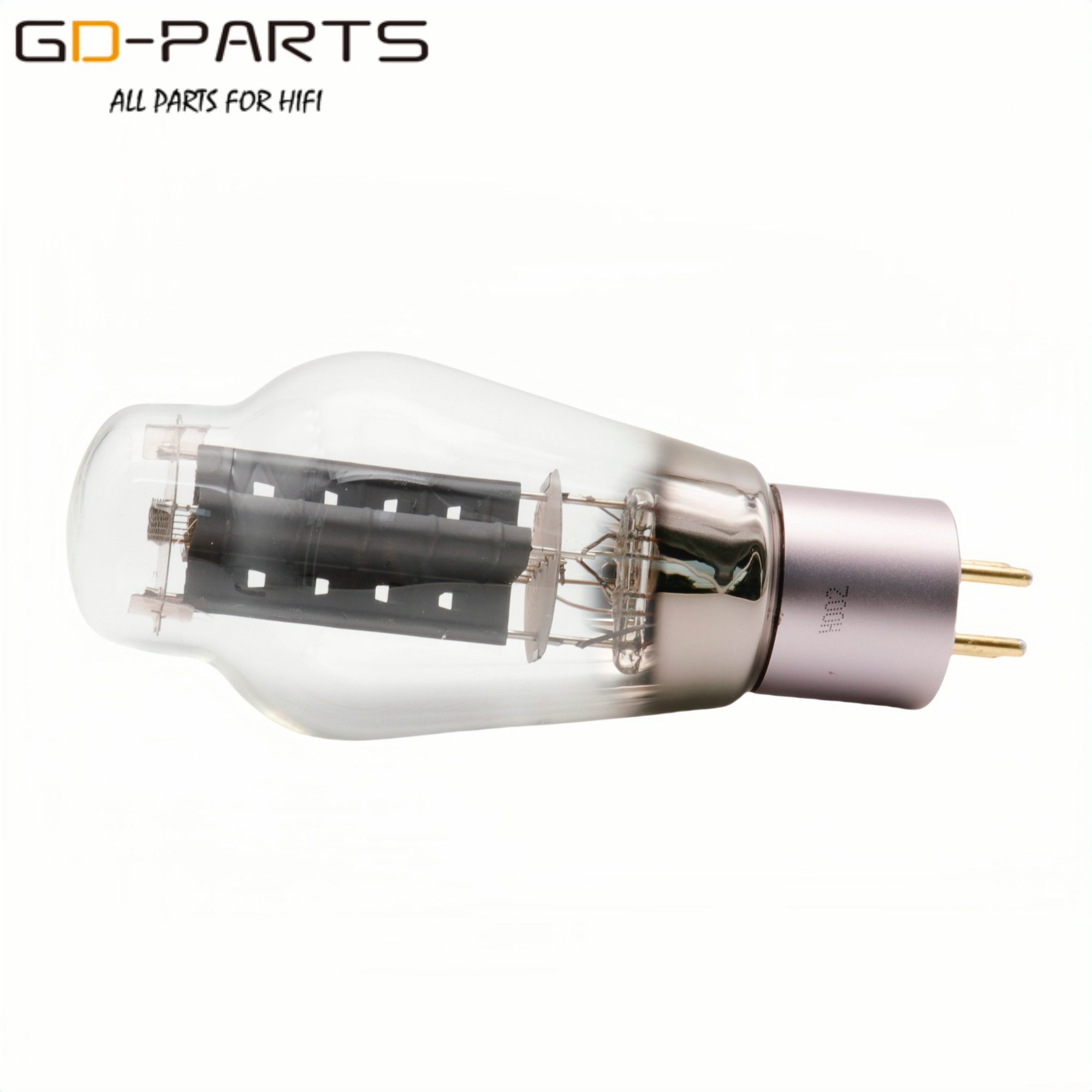

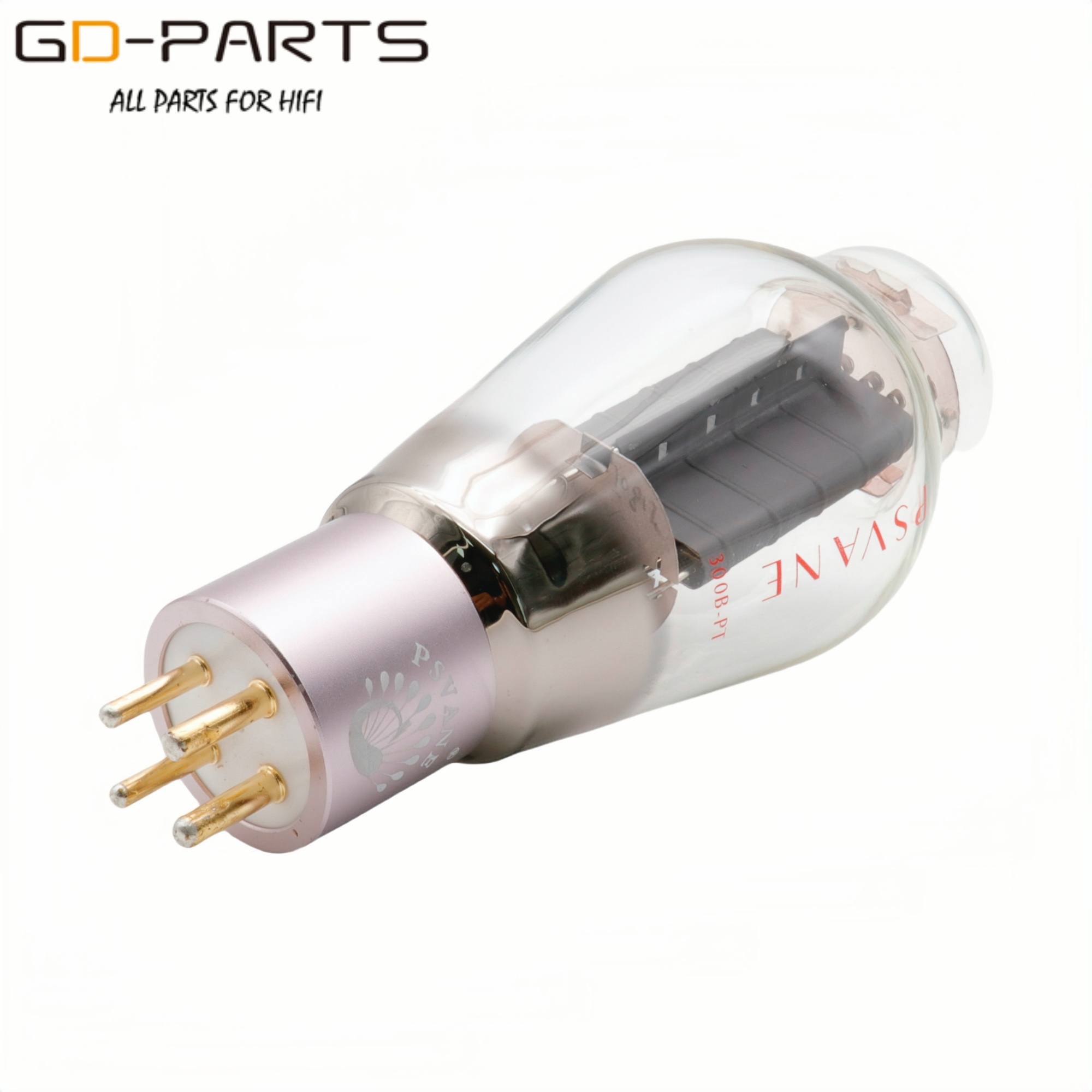

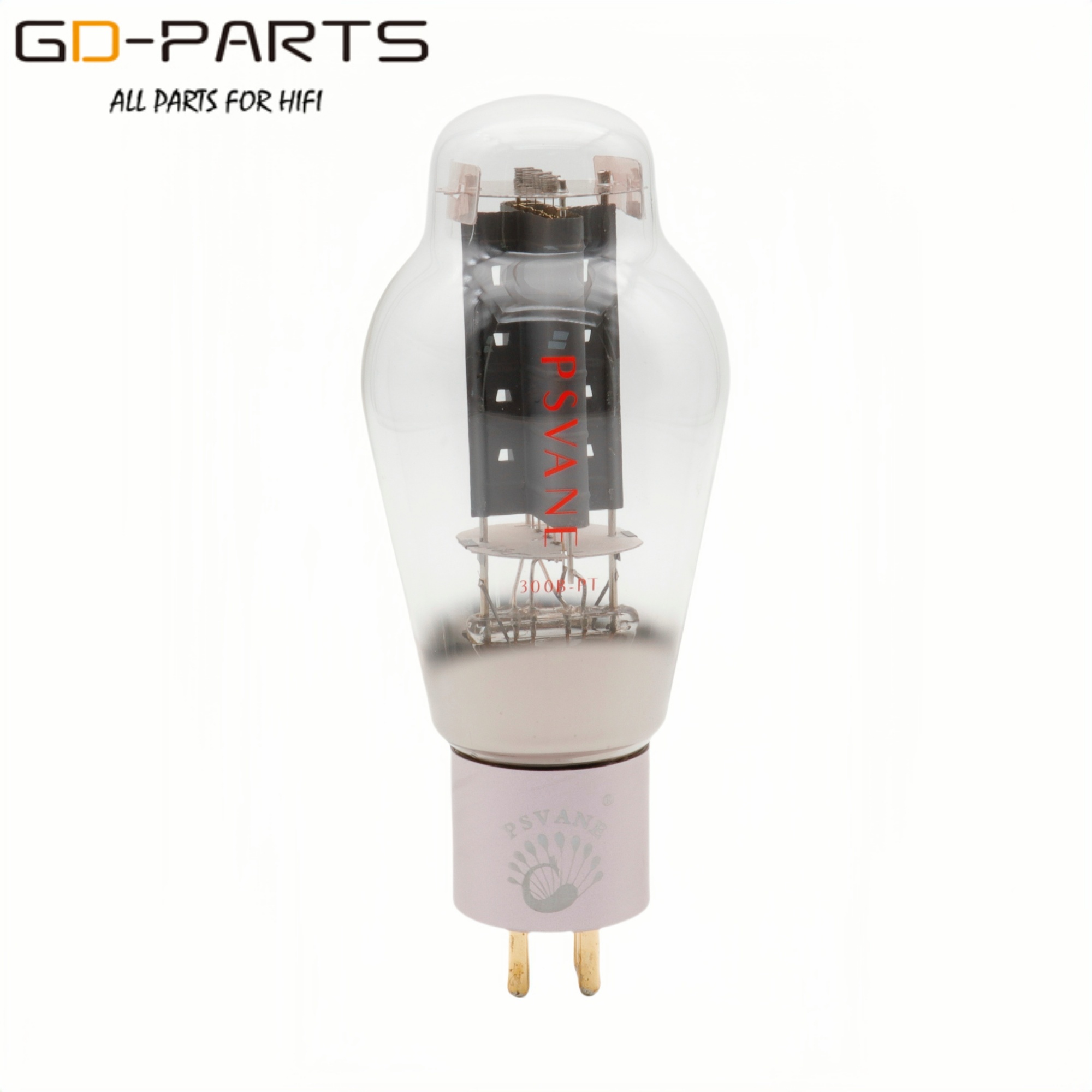

Brand New PSVANE HIFI series vacuum tube

The price is for 1 MATCHED PAIR (2PCS)

Original Factory Test and Match, easy to replace other brand 300B

Anode Voltage: 480V

Anode Power Dissipation: 40W

Anode Current:  self Bias: 100mA, Fixed Bias: 70mA


Input Capacitance:9PF

Output Capacitance:4.3PF

Transfer Capacitance: 15PF

Ua: 300V

-Ug:60V

Ia: 60mA

Gm: 5.5mA/V

Ri: 0.7Kohm

μ:3.85

Pout: 6.6W
HIFI 300B-D
