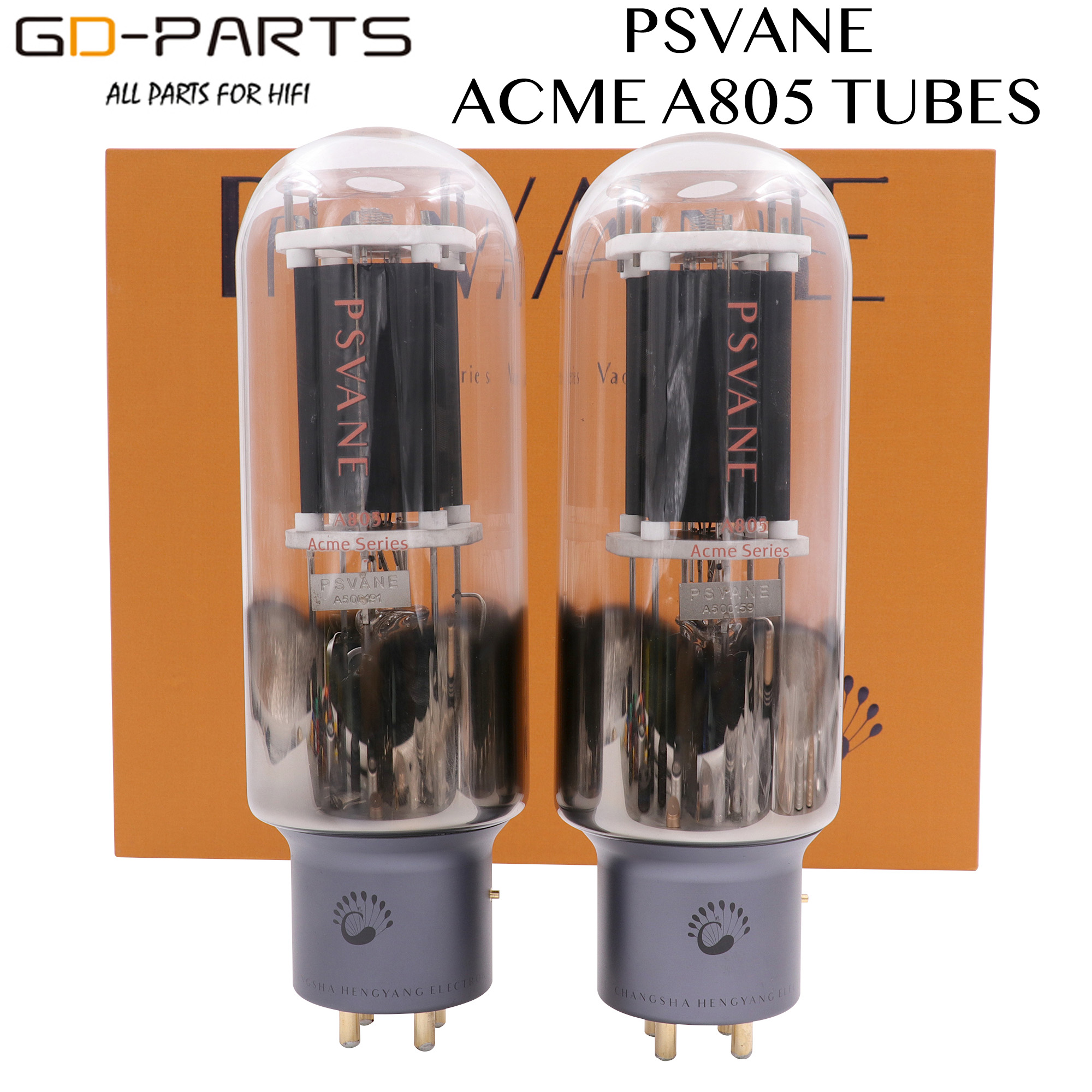

Brand new PSVANE Premium ACME series Vacuum Tubes

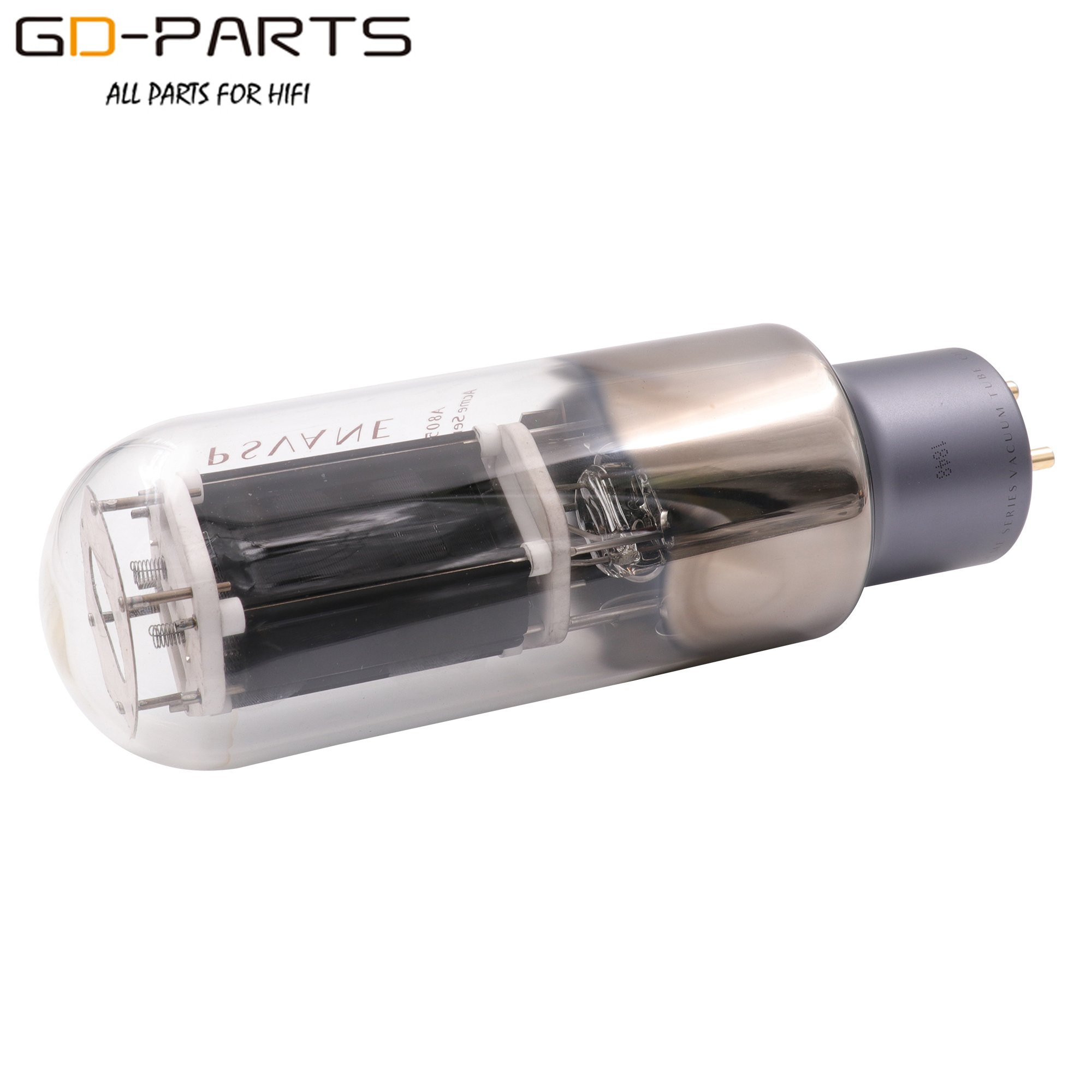

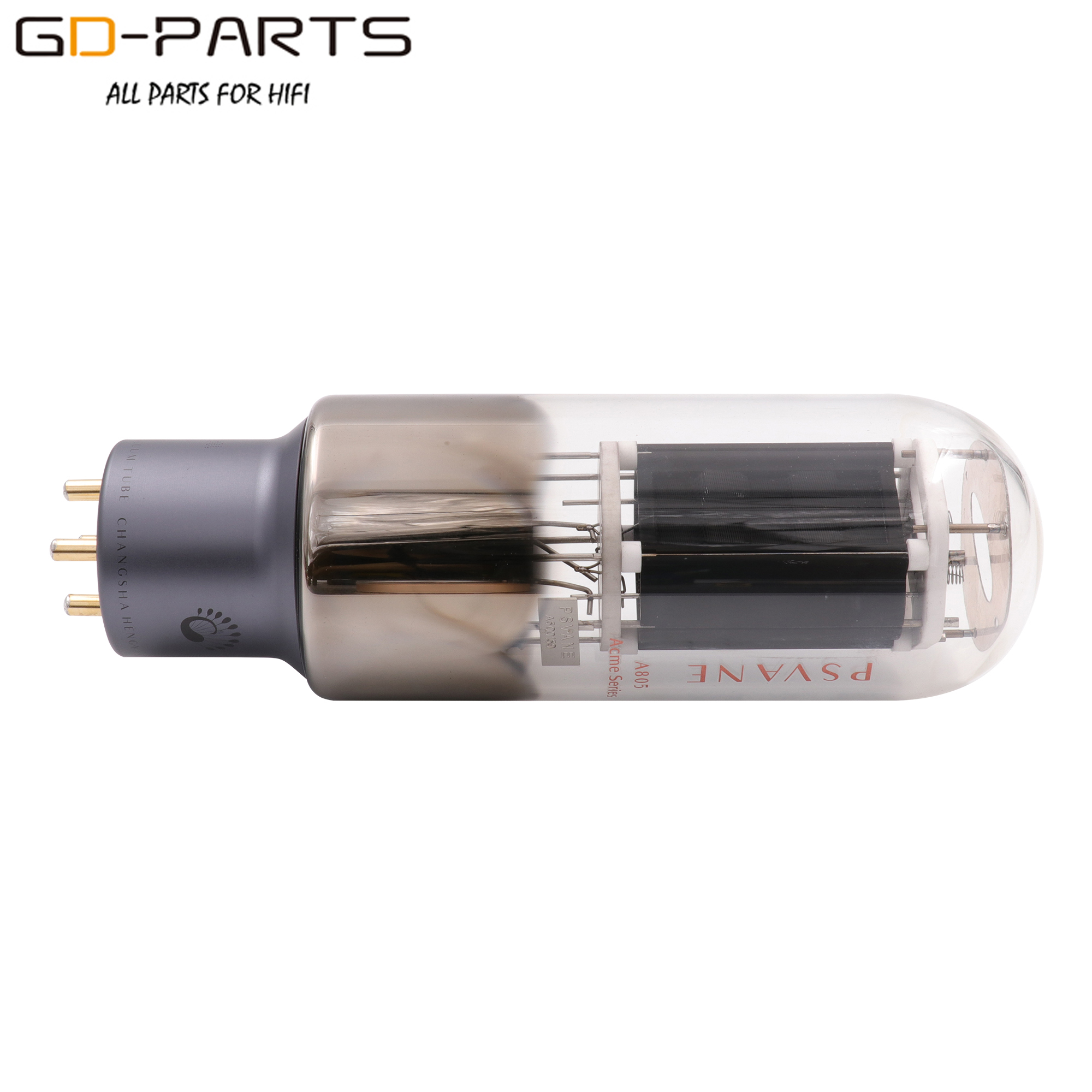

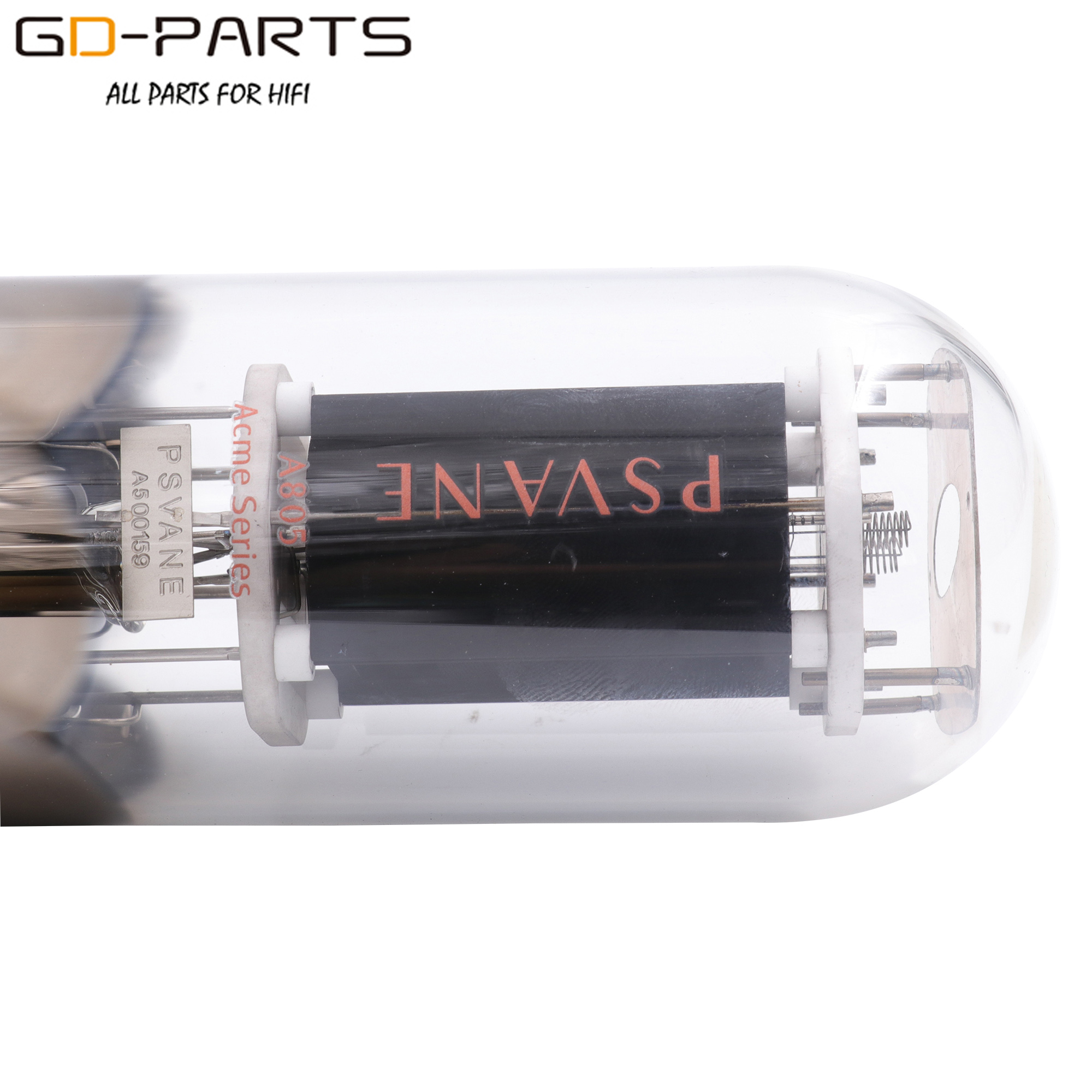

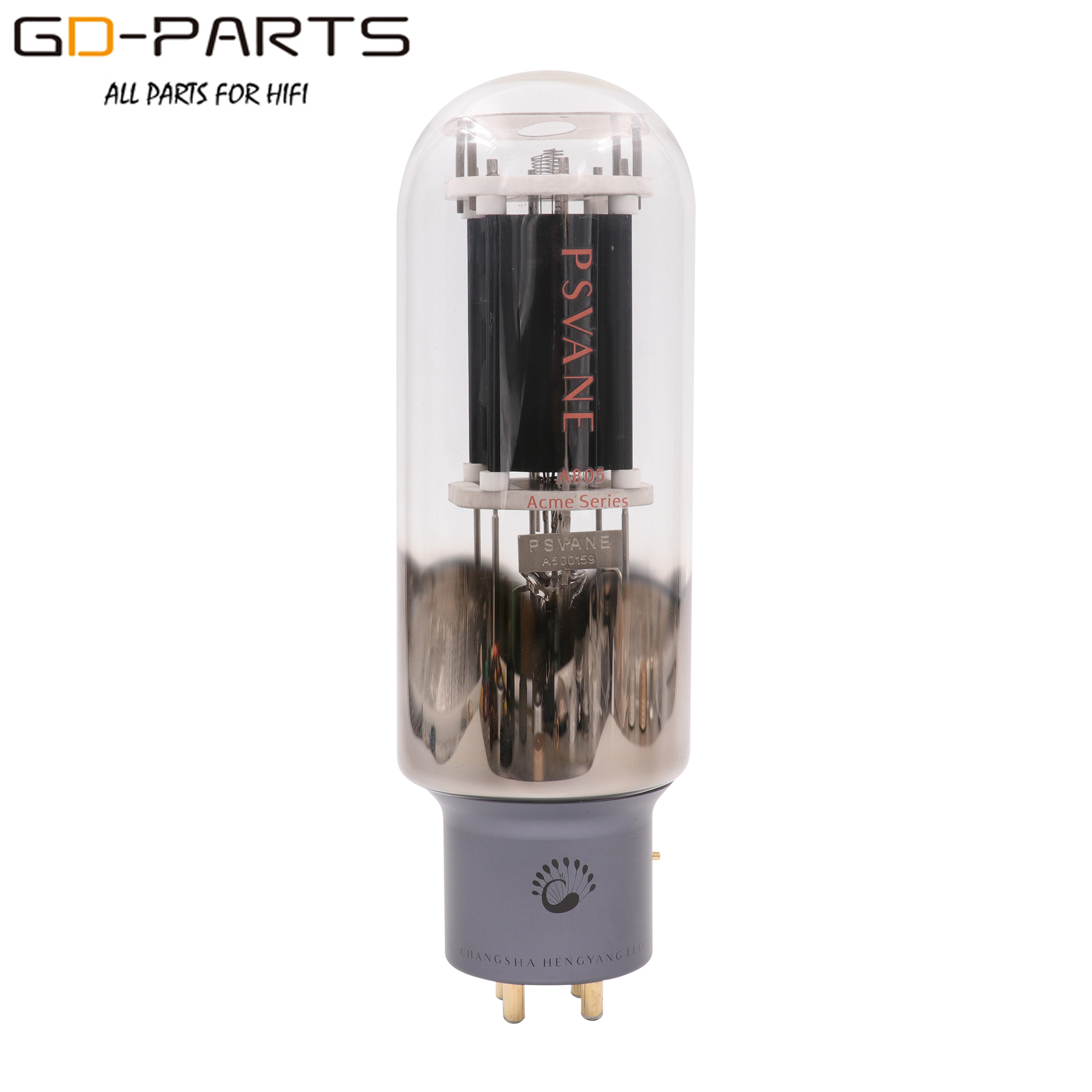

Model No.: ACME 805 (replace other 805,FU-5 tubes directly)

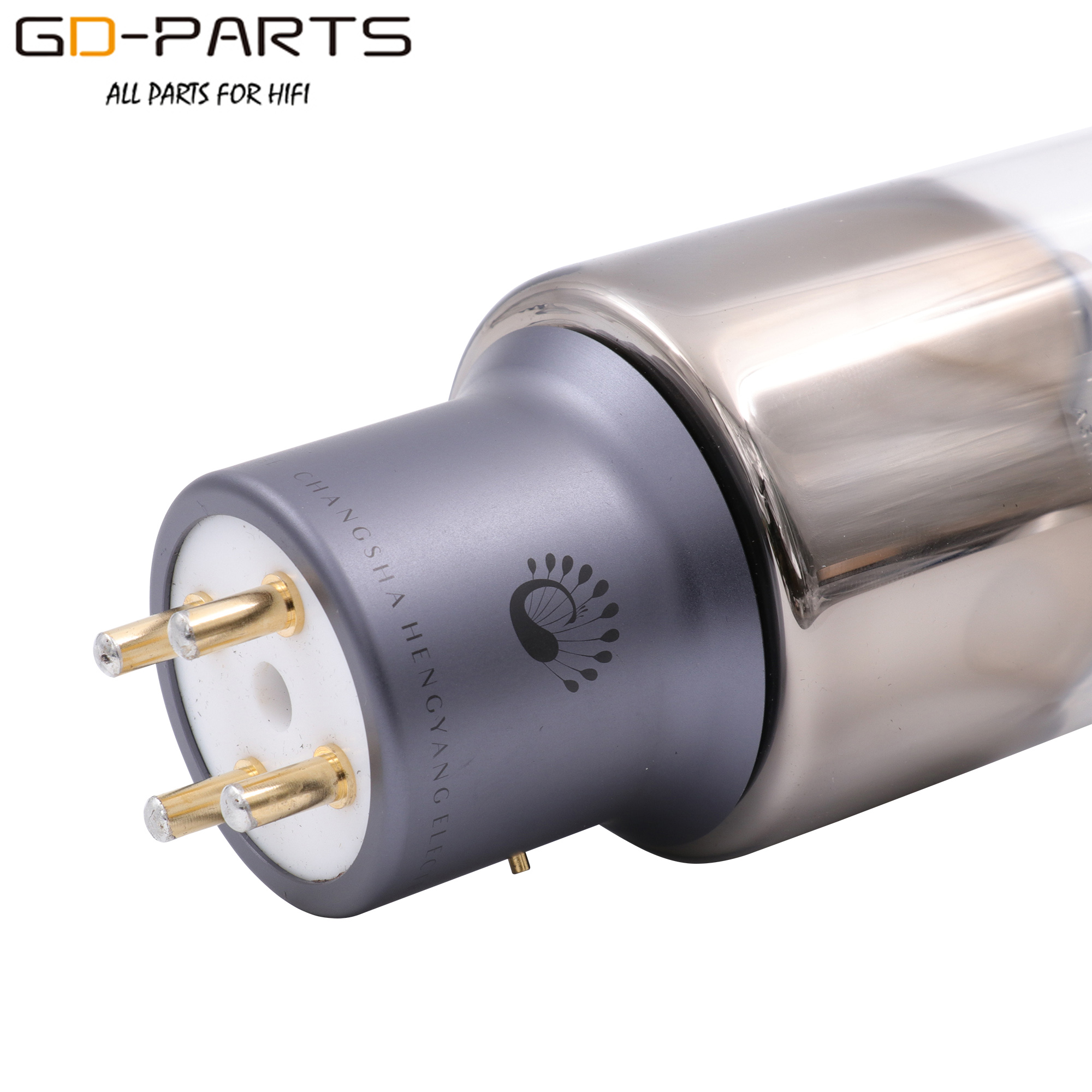

Aluminum teflon tube base
The price is for 1 matched pair/lot (factory test&match, one pair in a luxury gift box)
Maximum Rating
Ua---------------------------------1500 V
Pa-----------------------------125 W
Recommended Operating Conditions (reference value)
class B(A-F) for two tubes
typical working condition limited parameter
Ua------------------ 1250 1500 1250 V
Ia (mAx.sig per tube)------------------- 210 mA
Pa (in) (mAx.sig per tube)--------------- 315 W
Pa (per t ---------------------------- 125 W
Ug---------------------------------- —16 V
Ug(pk)---------------- 235 280 V
Ia (0)----------------- 148 84 mA
Ia（mAx.sig）---------- 500 600 mA
Pd(mAx.sig)------------ 6 7 W
