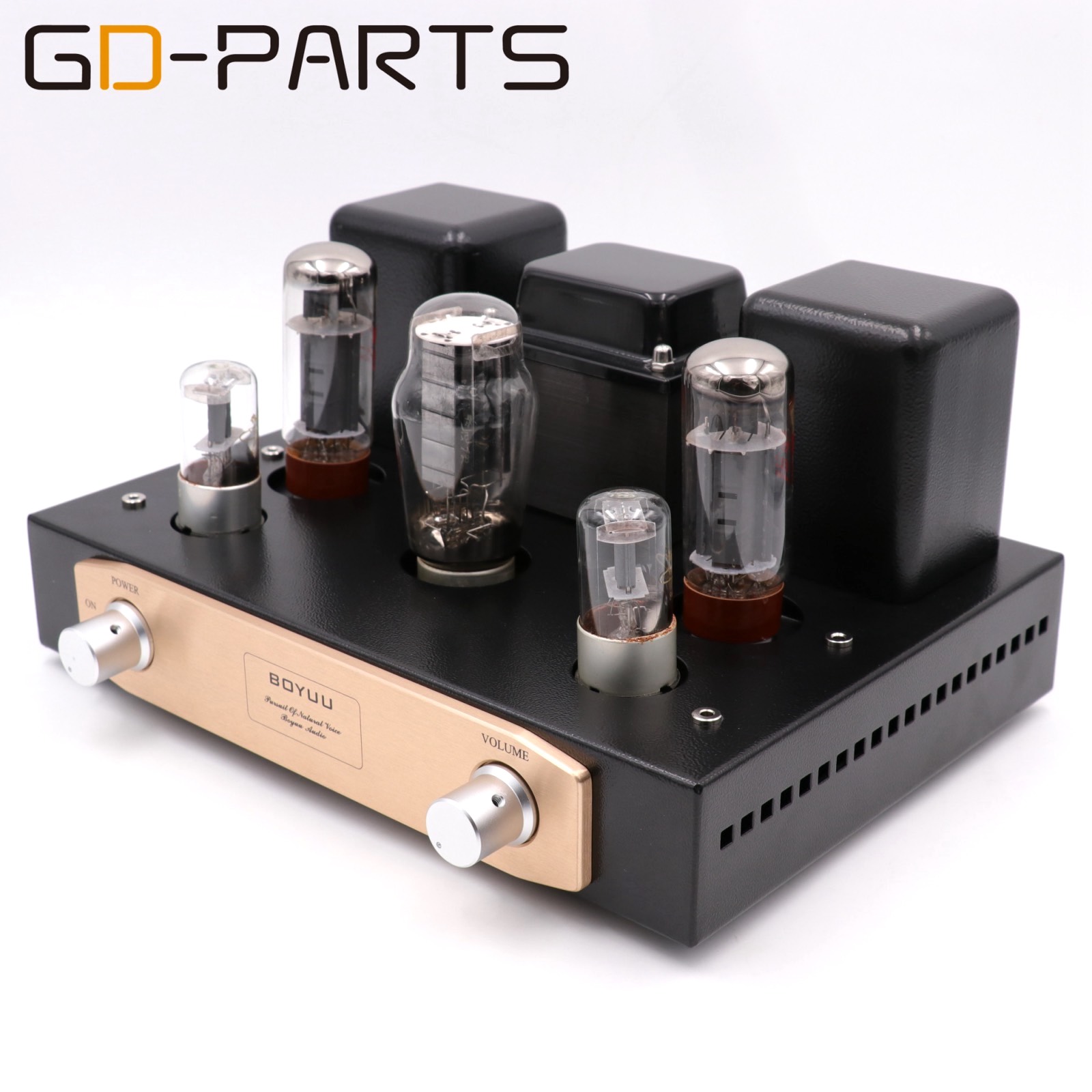

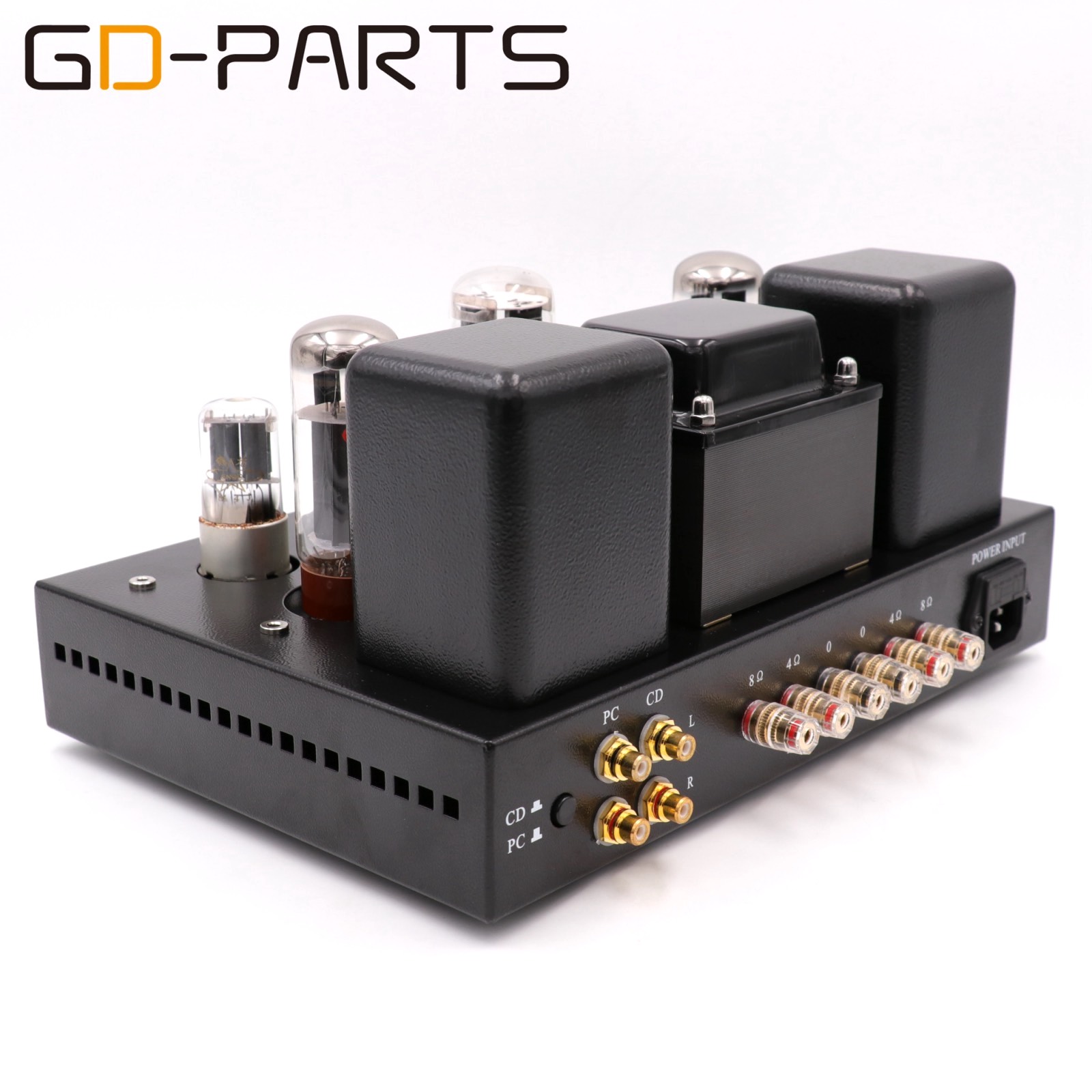

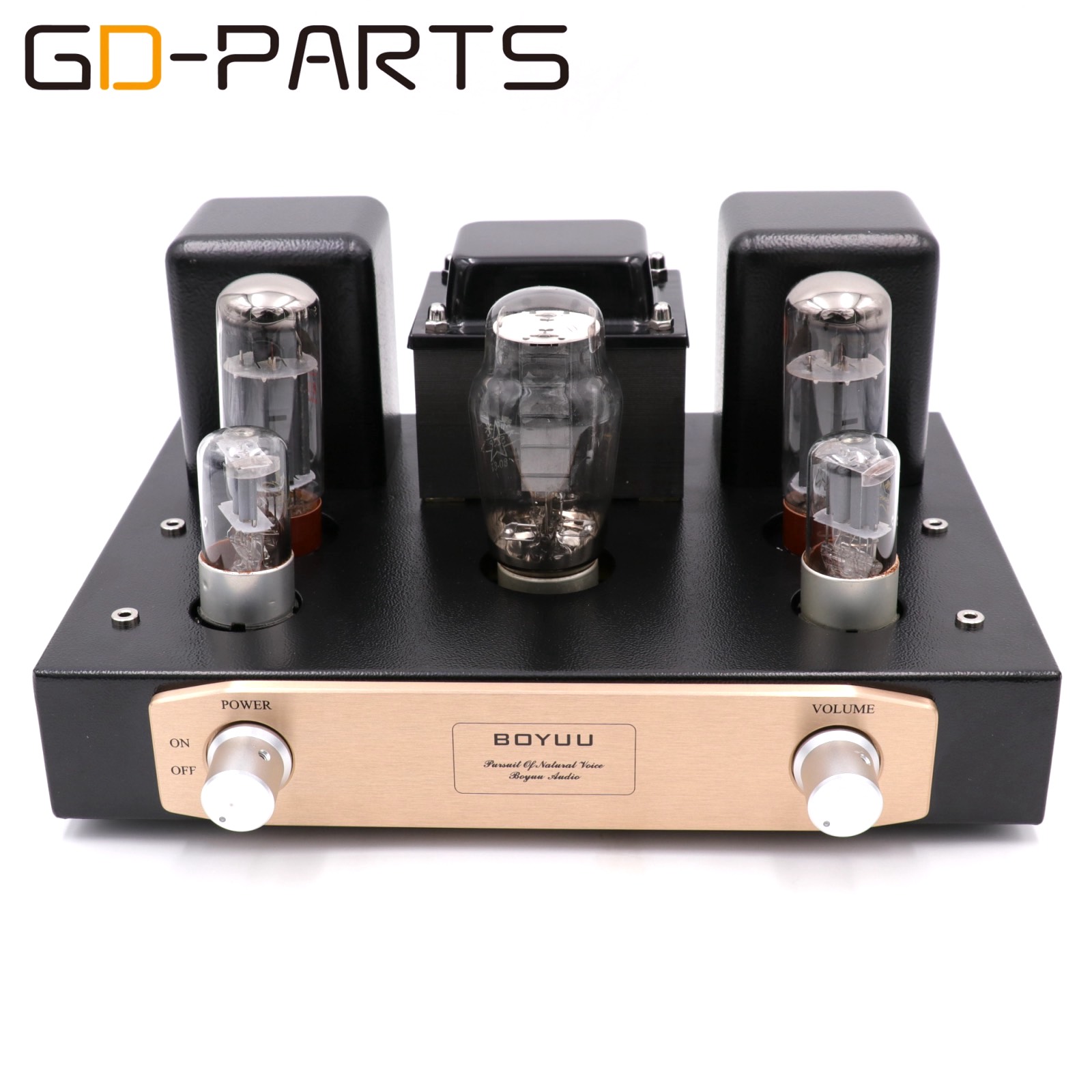

GD-PARTS Class A Single End EL34 Vacuum Tube Amplifier Integrated Tube AMP 2x12W
Item ID #A9
List Price: $260.00
Price: $265.00
Qty.Range(unit) Price(per unit) Discount
1 $265.00 $0.00
3 $255.00 $10.00
5 $245.00 $20.00
10 $235.00 $30.00
Quantity: Unit(s)
Description

New Hand wired Single End EL34 Integrated Tube AMP

Stereo, Class A, Single End

Input power: 110V and 220V are both available

Output power: 12W*2 (ultra linear connection)

Frequency response: 20Hz-28KHz

Output impedance: 4ohm, 8ohm

Distortion: less than 1% (1Khz)

Input sensitivity: 750mV

Input impedance: 100Kohm (2 ways input signal)

Signal to Noise Ratio: 88dB

Power amplify tubes: 6N9Px2PCS

Power tubes: Shuguang EL34Bx2PCS

Rectifier tube: 5Z3PJx1PC

Power transformer: 0.35mm plates, height=60mm (96-60) (max. 200W)

Output transformer: 0.35mm plates, audio grade (76-40)

Output connectors: Gold plated binding posts

Input connectors: Female RCA Jacks

Machined Full Aluminum Front Gear Plate

Punched Iron plate chassis, punched iron transformer covers

Measurements: 310*220*160mm (W*D*H)

Weight: 10KG

Quantity: 1 set/lot (Assembled)
