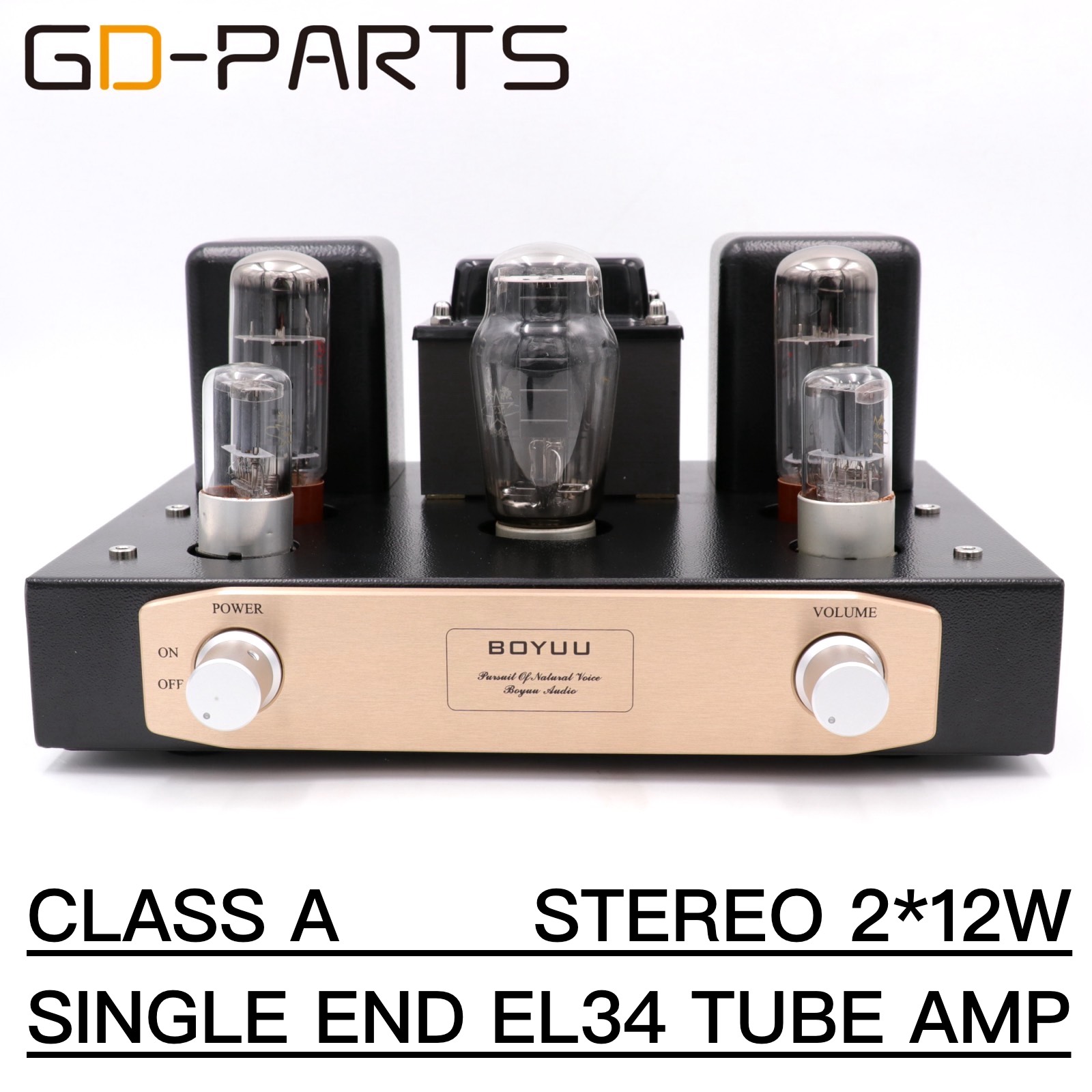

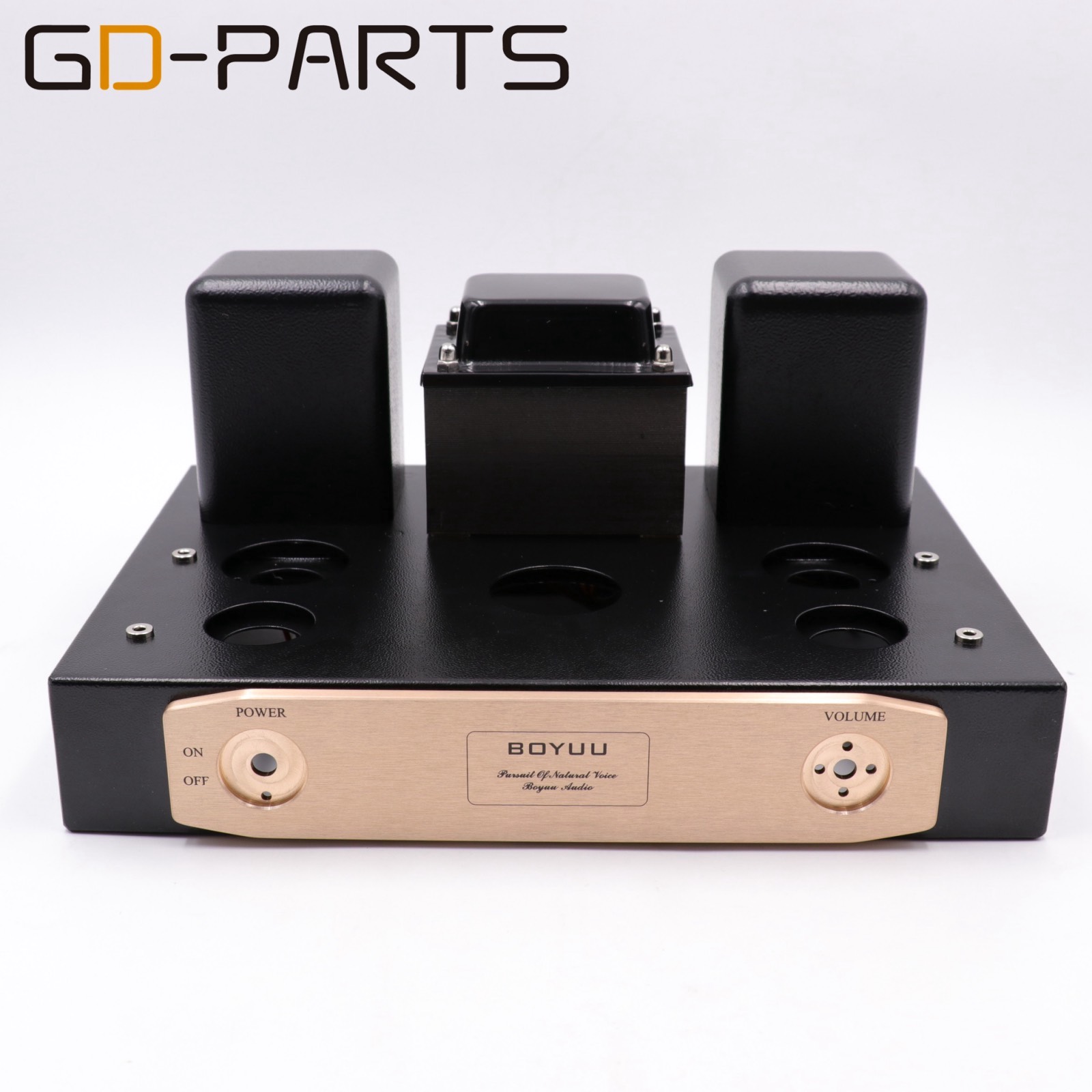

GD-PARTS Class A Single End EL34 Vacuum Tube Amplifier Integrated Tube AMP 2x12W DIY Kits Not Assembled
Item ID #A9-KITS
List Price: $270.00
Price: $265.00
Qty.Range(unit) Price(per unit) Discount
1 $265.00 $0.00
3 $255.00 $10.00
5 $245.00 $20.00
10 $235.00 $30.00
Quantity: Unit(s)
Not in stock   Add to Wish Lists
Description

New Hand wired Single End EL34 Integrated Tube AMP

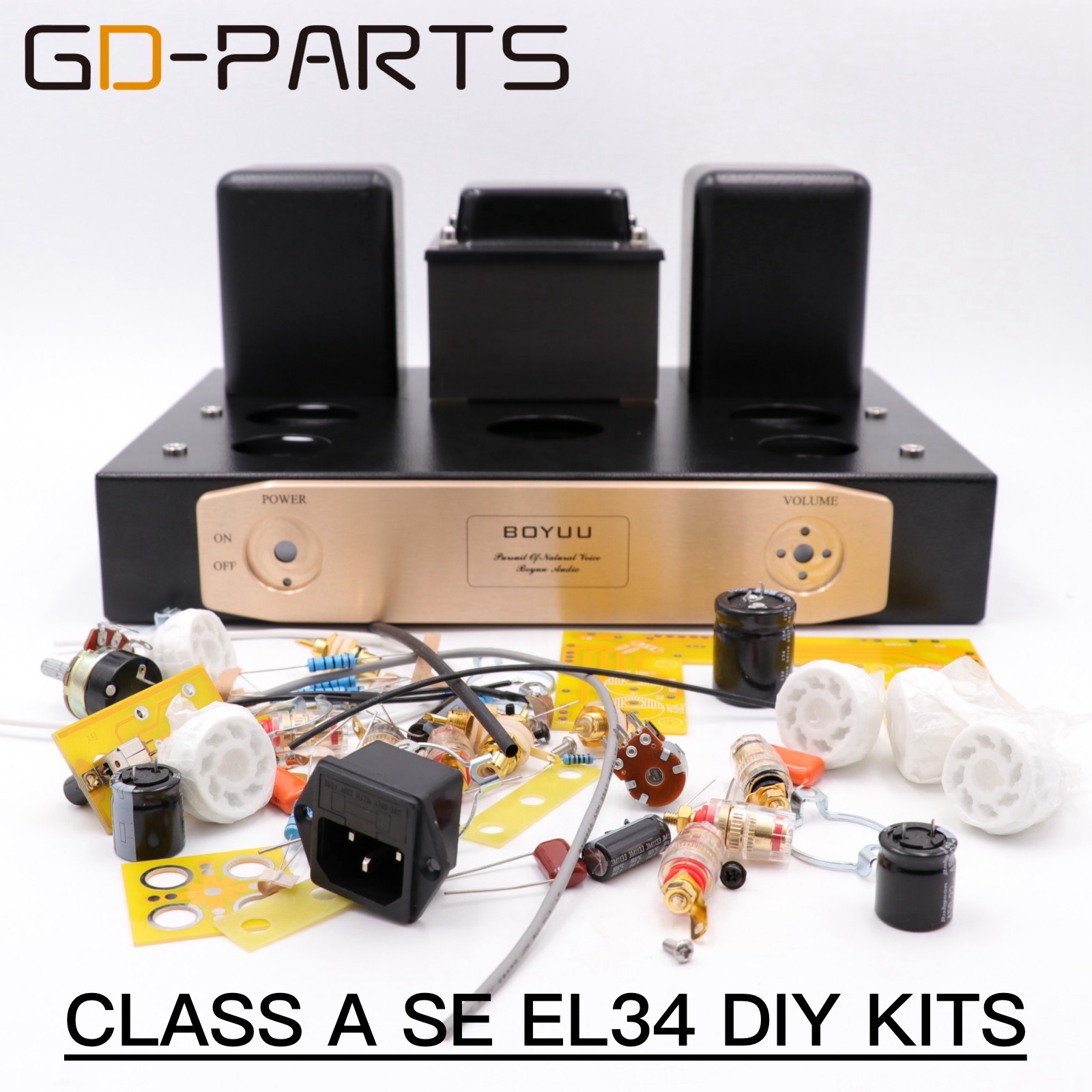

It's complete DIY kits, not assembled, please assembled it yourself

Stereo, Class A, Single End

Input power: 110V and 220V are both available

Output power: 12W*2 (ultra linear connection)

Frequency response: 20Hz-28KHz

Output impedance: 4ohm, 8ohm

Distortion: less than 1% (1Khz)

Input sensitivity: 750mV

Input impedance: 100Kohm (2 ways input signal)

Signal to Noise Ratio: 88dB

Power amplify tubes: 6N9Px2PCS

Power tubes: Shuguang EL34Bx2PCS

Rectifier tube: 5Z3PJx1PC

Power transformer: 0.35mm plates, height=60mm (96-60) (max. 200W)

Output transformer: 0.35mm plates, audio grade (76-40)

Output connectors: Gold plated binding posts

Input connectors: Female RCA Jacks

Machined Full Aluminum Front Gear Plate

Punched Iron plate chassis, punched iron transformer covers

Measurements: 310*220*160mm (W*D*H)

Weight: 10KG

Quantity: 1 set/lot ( not assembled)
