| Qty.Range(unit) | Price(per unit) | Discount |
| 1 | $48.00 | $0.00 |
| 5 | $45.00 | $3.00 |
| 10 | $43.00 | $5.00 |
| 20 | $40.00 | $8.00 |
| 50 | $39.00 | $9.00 |

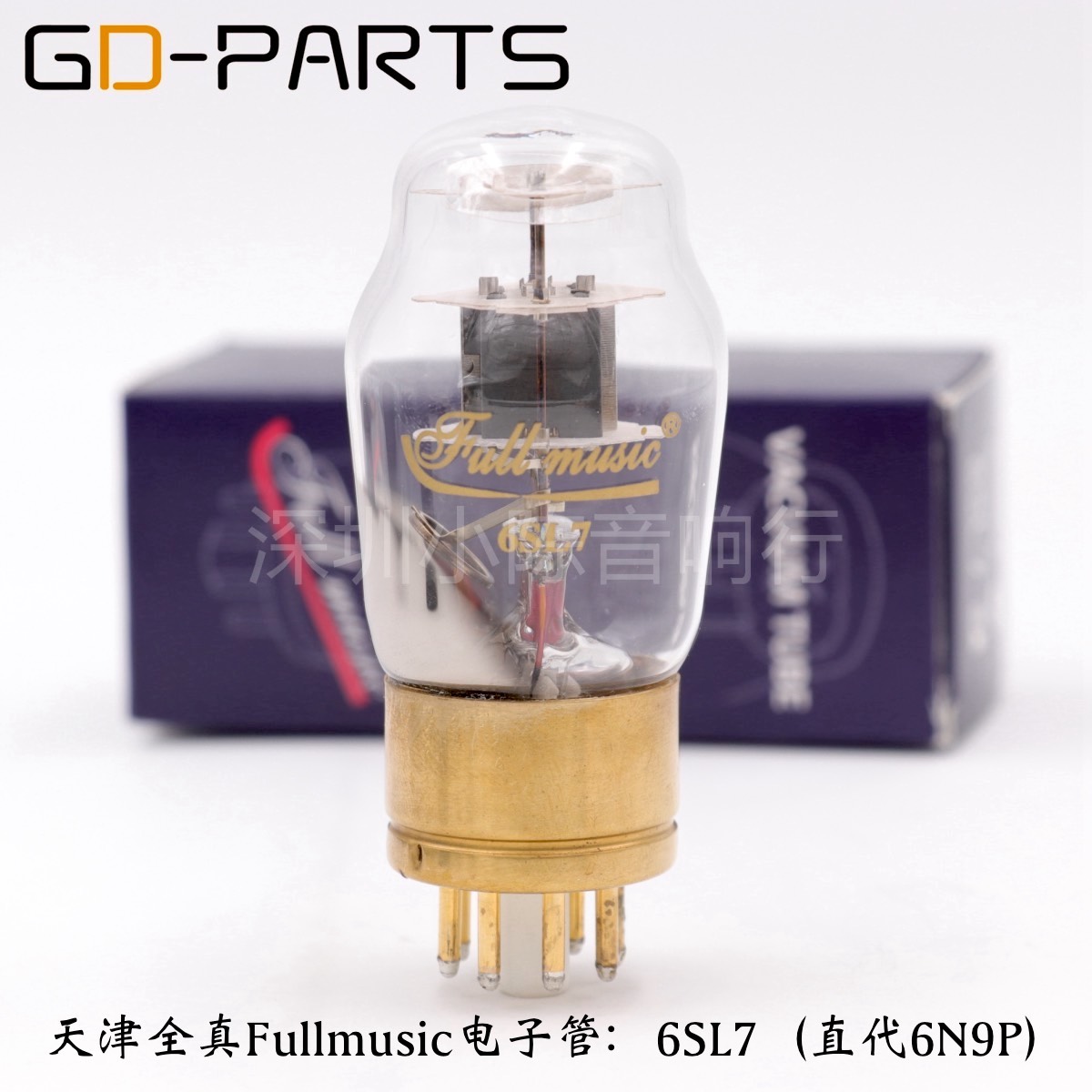

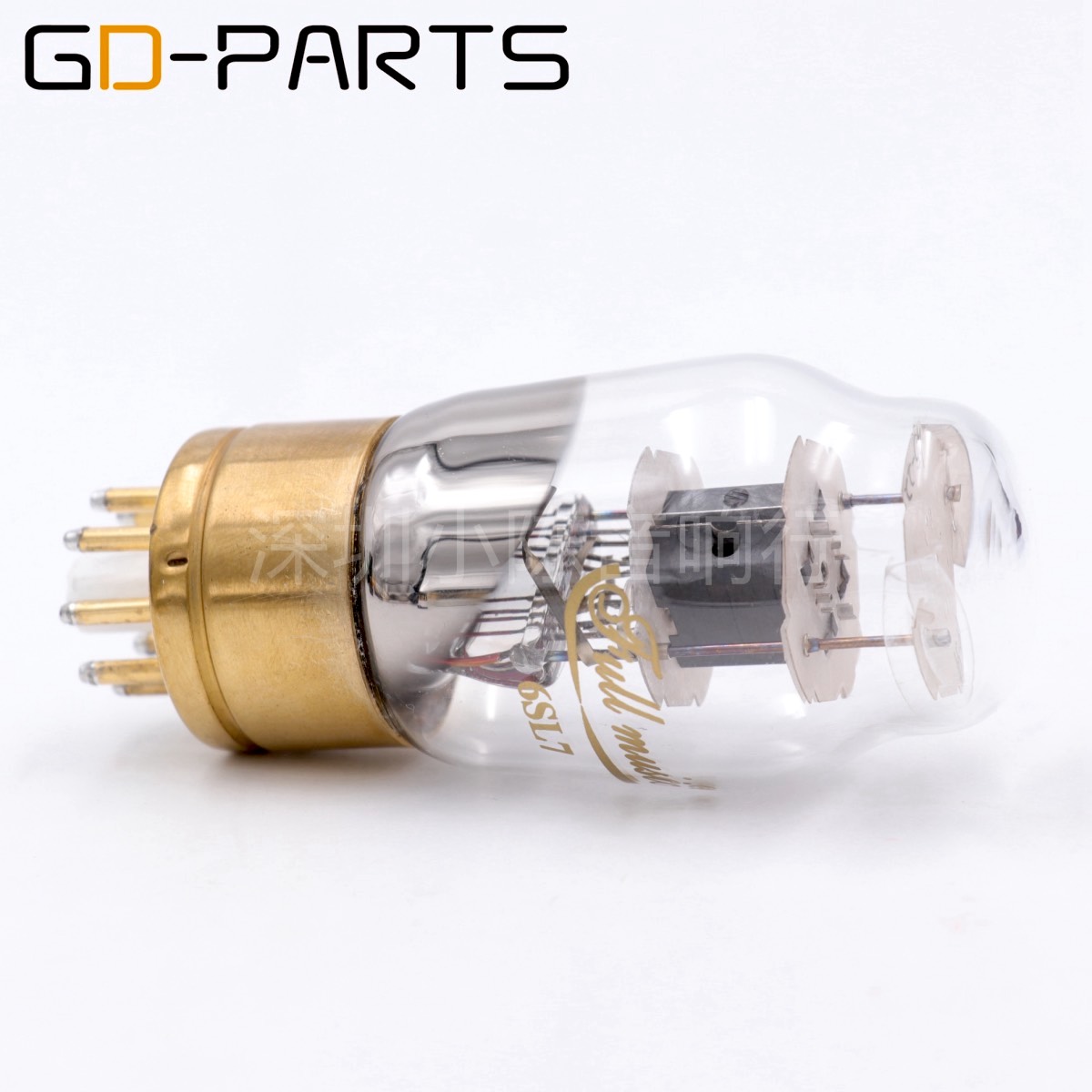

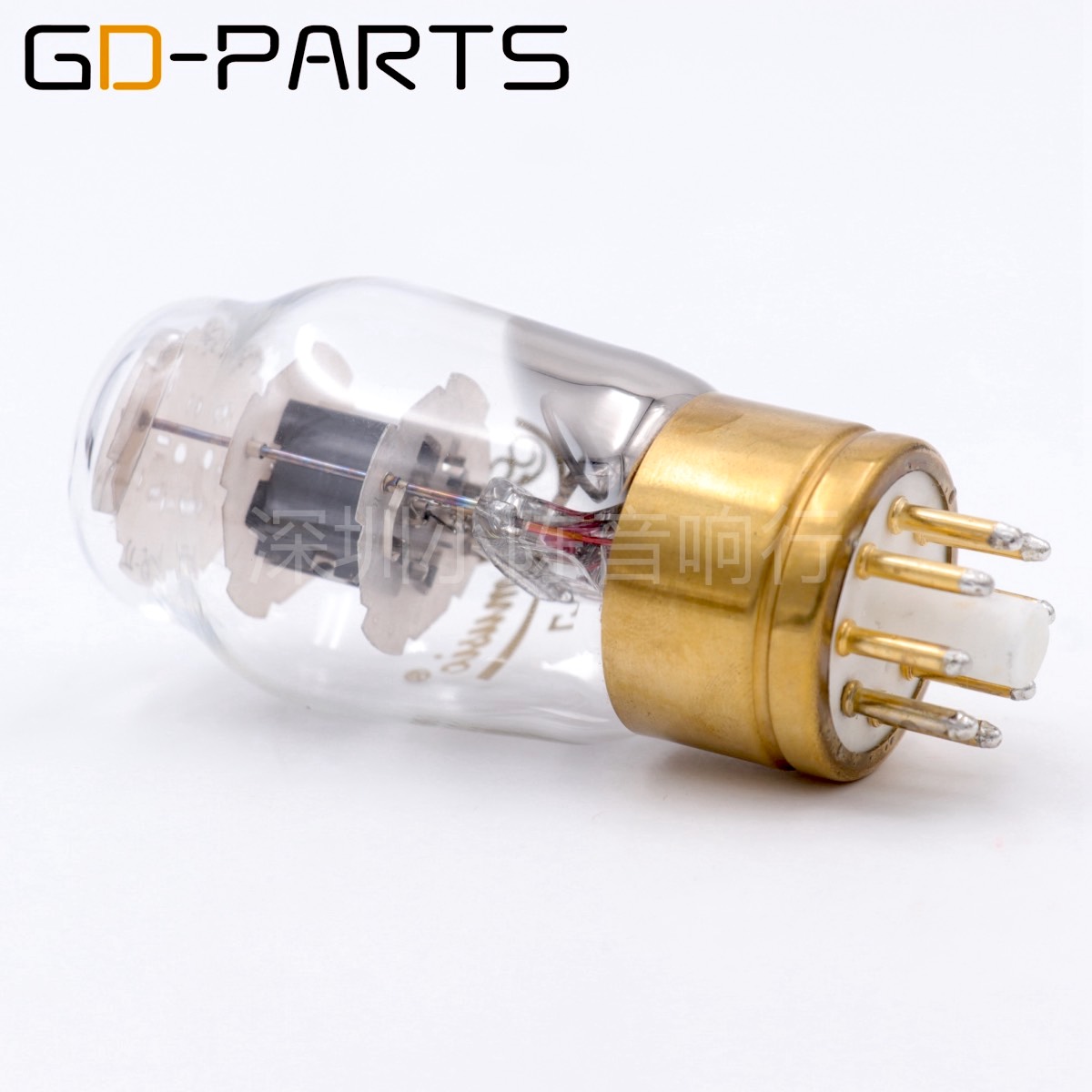

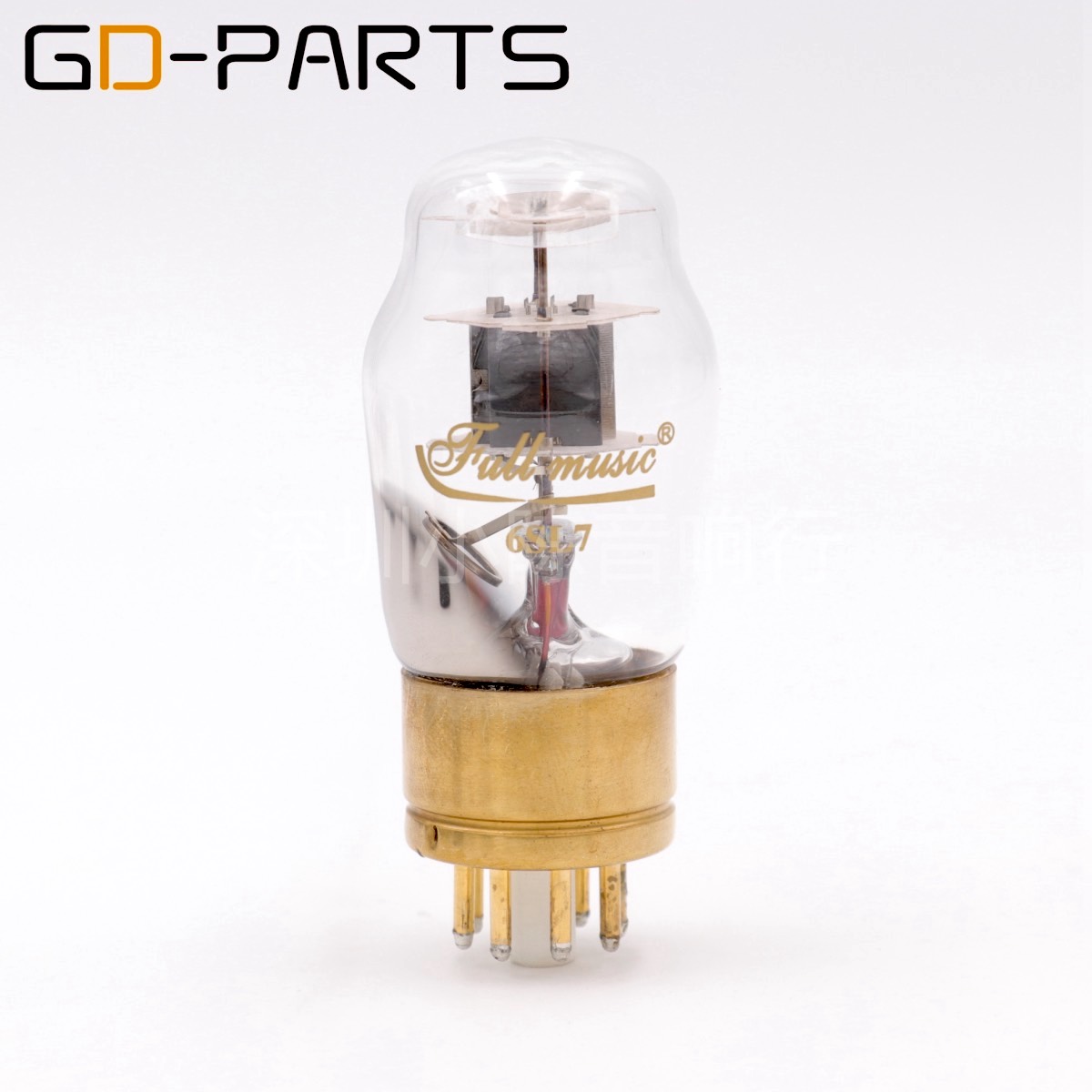

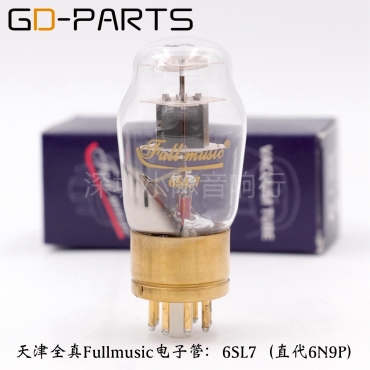

BRAND NEW TJ FULLMUSIC VACUUM TUBE
Item No.: Fullmusic 6SL7/ECC35, Replace 6N9P
We can offer Matched Pairs by original factory
Quantity: 1PC/lot
Nominal operating conditions and parameters
Heater voltage ……………………………………………………………… 6.3V
Heater current ……………………………………………………………… 0.3A
Plate voltage ………………………………………………………………… 250V
Grid voltage ………………………………………………………………… -2V
Plater resistance ………………………………………………………… 44kohms
Plate current ………………………………………………………………… 2.3mA
Amplification factor …………………………………………………………… 70
Heater-cathode voltage ……………………………………………………… 90V
Limiting Operation Conditions for Safe Nor simultaneous ratings
Maximum plate voltage ………………………………………………… 300 V
Maximum Grid voltage ………………………………………………… -50V
Maximum Grid voltage ………………………………………………… 0V
Maximum Power of plate …………………………………………… 2.5W
