PSVANE ECC82 12AU7 Vacuum Tubes
Item ID #PSVANE-ECC82
List Price: $11.50
Price: $11.00
Qty.Range(unit) Price(per unit) Discount
1 $11.00 $0.00
10 $10.00 $1.00
50 $9.50 $1.50
100 $8.90 $2.10
500 $8.50 $2.50
Quantity: Unit(s)
Description

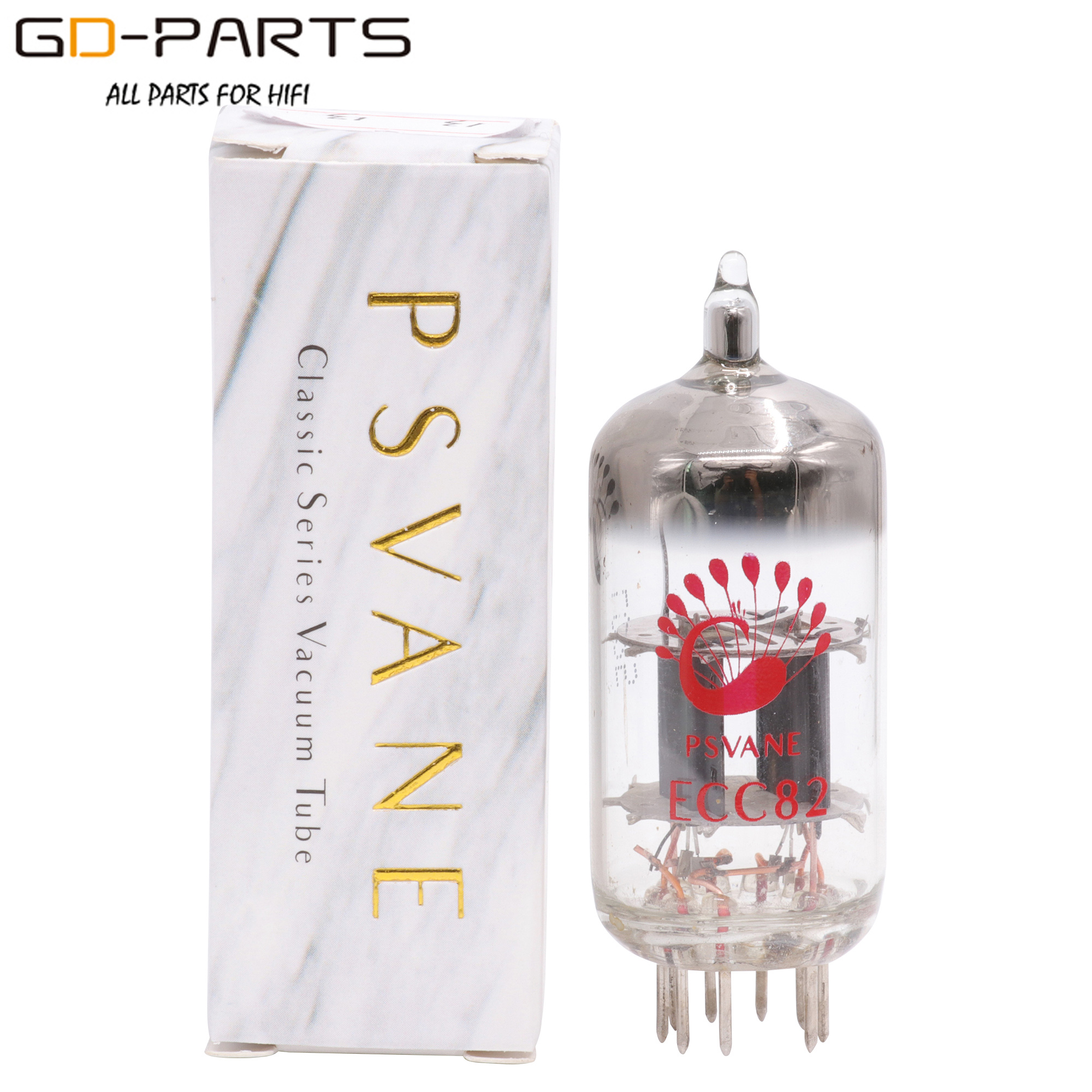

Brand new&original PSVANE ECC82 tube

Item No.: PSVANE ECC82 (replace 12AU7)

UH: 6.3V    12.6V
IH: 0.30A    0.15A

UA: 100V    250V
Ug: 0V      -8.5V
Ia: 11.8mA   10.5mA
Gm: 3.15mA/V  2.2mA/V
μ: 20    17
ri: 6.5KΩ   7.7KΩ

Class A1 max.value (each side)
Plate voltage: 300v
Anode power dissipation: 2.75W

Pins:
1. Plate
2. Grid
3. K
4. Filament
5. Filament
6. Plate
7. Grid
8. K
9. Filament
