PSVANE Hifi 300B Vacuum Electron Tubes For Vintage Hifi Tube Audio AMPS DIY Bakelite Tube Base: HIFI 300B-B
Item ID #HIFI 300B-B
List Price: $120.00
Price: $115.00
Qty.Range(unit) Price(per unit) Discount
1 $115.00 $0.00
10 $105.00 $10.00
50 $100.00 $15.00
100 $95.00 $20.00
Quantity: Unit(s)
Description

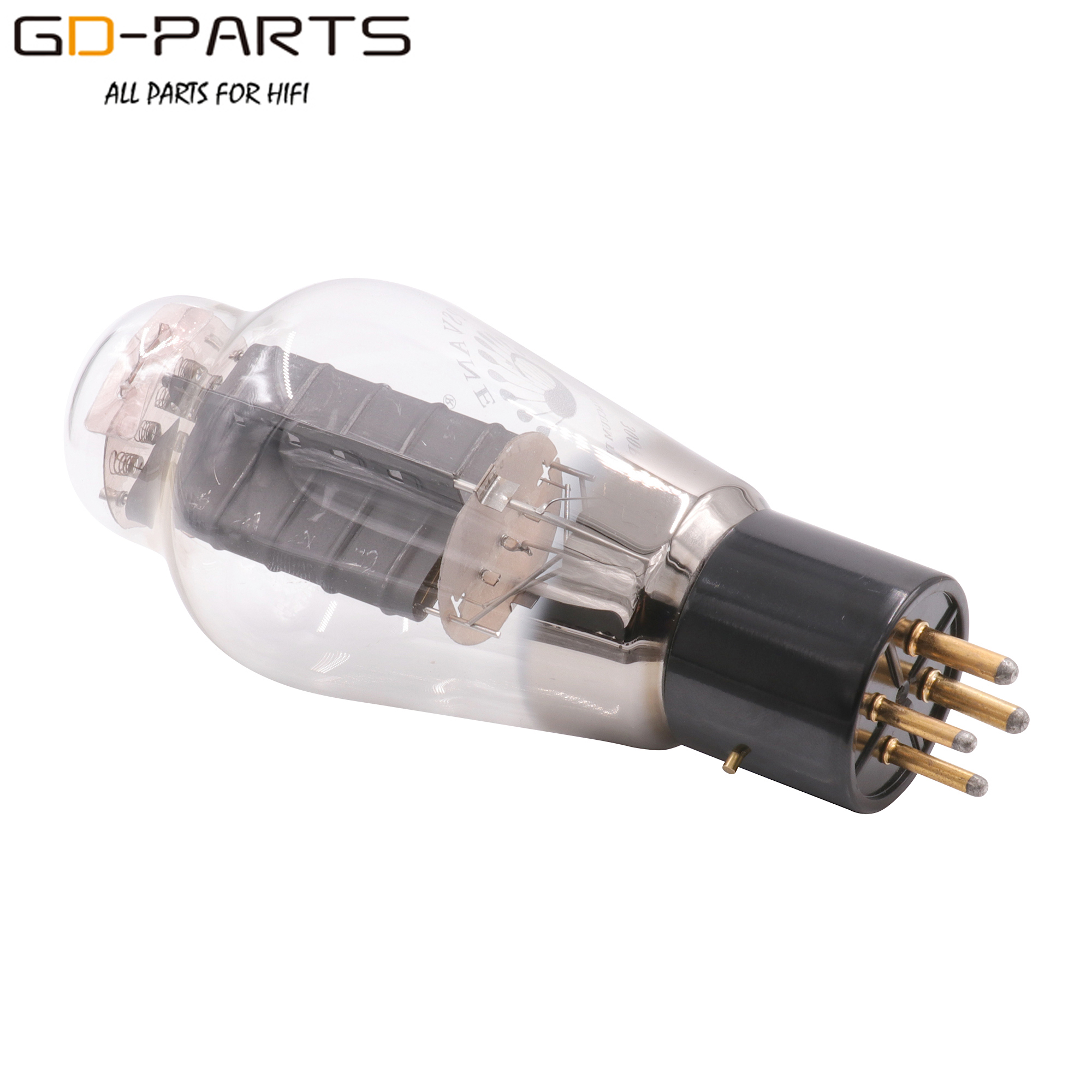

Brand New PSVANE HIFI series vacuum tube

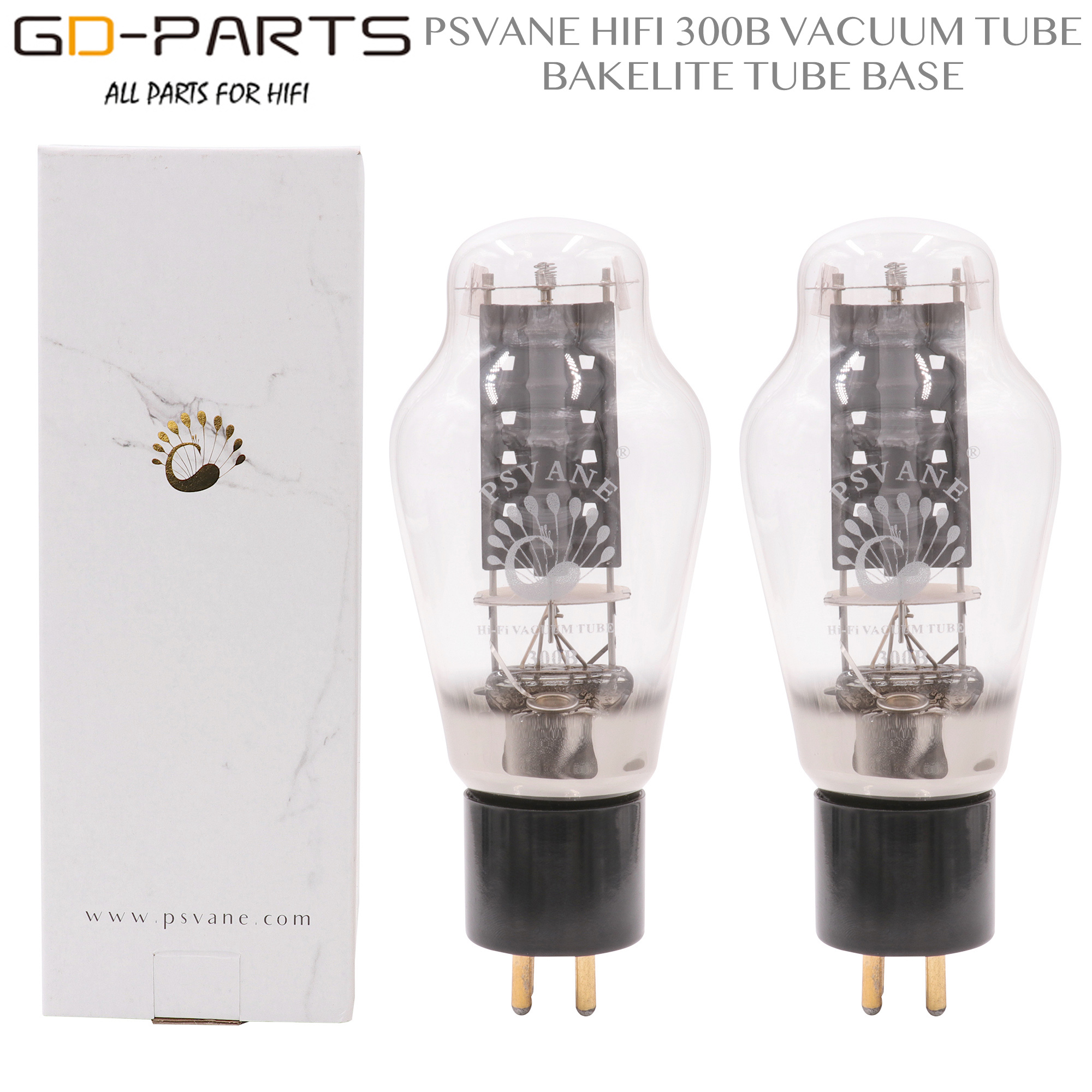

The price is for 1 MATCHED PAIR (2PCS)

Original Factory Test and Match, easy to replace other brand 300B

Black bakelite tube base

Anode Voltage: 480V

Anode Power Dissipation: 40W

Anode Current:  self Bias: 100mA, Fixed Bias: 70mA


Input Capacitance:9PF

Output Capacitance:4.3PF

Transfer Capacitance: 15PF

Ua: 300V

-Ug:60V

Ia: 60mA

Gm: 5.5mA/V

Ri: 0.7Kohm

μ:3.85

Pout: 6.6W
